DKL (XJ)

Similar image
Similar image

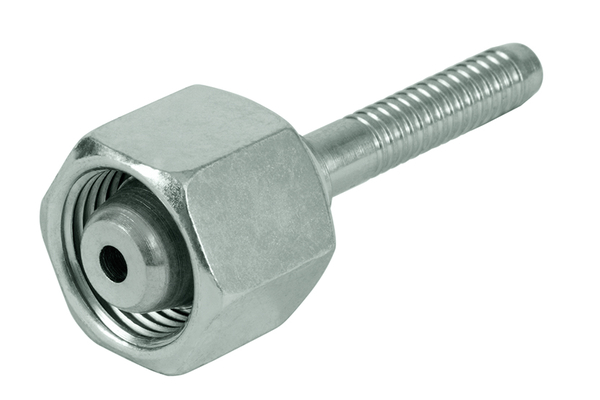

Sealing cone with union nut, light series

To accessories

Detail

Art. No.
XJ14MSF08-02
%
SALE
XJ14MSF08-04
%
SALE
DN
04
06
Size
02
04
Inch
1/8
1/4
Thread + standard

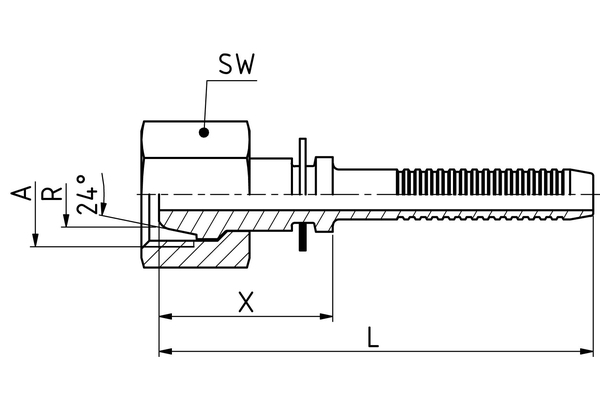

Sealing cone with union nut light series
Sealing cone with union nut light series
Connection thread A
M14x1,5
M14x1,5
Pipe Ø R [mm]
8
8
X [mm]
20,2
22,0
L1 [mm]
48,8
56,9
SW1 [mm]
19
19
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MSF
    Connection type: DKL
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: 700 bar hydraulic tool series XJ
