Product info
-
Technical data

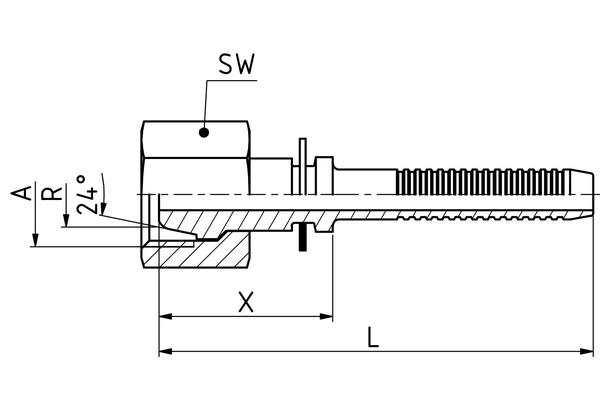

DN: 06 Size: 04 Inch: 1/4 Thread + standard: Sealing cone with union nut light series Connection thread A: M14x1,5 Pipe Ø R [mm]: 8 X [mm]: 22,0 L1 [mm]: 56,9 SW1 [mm]: 19 Connection name Indunorm: MSF Connection type: DKL Material: Free cutting steel Resistance against red rust [h]: 144 Resistance against white rust [h]: 72 Surface: galvanised and Cr III passivated Type of fittings: 700 bar hydraulic tool series XJ
