DKS (XJ)

Similar image
Similar image

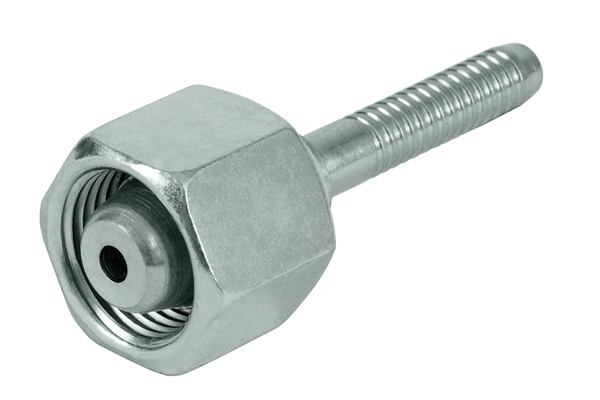

Sealing cone with union nut, heavy series

To accessories

Detail

Art. No.
XJ16MSF08-02
%
SALE
XJ16MSF08-04
%
SALE
XJ18MSF10-04
%
SALE
DN
04
06
06
Size
02
04
04
Inch
1/8
1/4
1/4
Thread + standard
Sealing cone with union nut heavy series
Sealing cone with union nut heavy series
Sealing cone with union nut heavy series

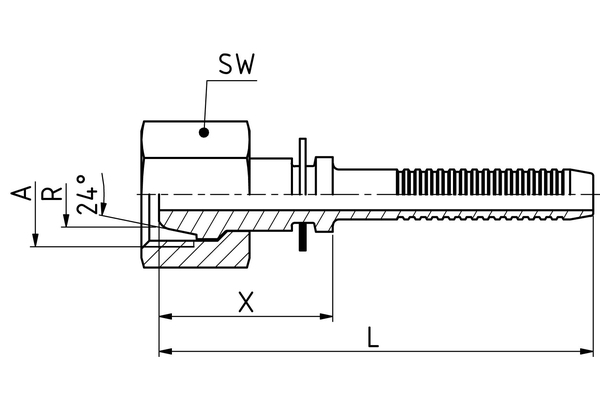

Connection thread A
M16x1,5
M16x1,5
M18x1,5
Pipe Ø R [mm]
8
8
10
X [mm]
20,2
25,0
25,3
L1 [mm]
48,8
59,7
60,3
SW1 [mm]
19
19
22
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MSF
    Connection type: DKS
    Material: Free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: 700 bar hydraulic tool series XJ
