XJ16MSF08-04
DKS MSF

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Thread + standard:	Sealing cone with union nut heavy series
  Connection thread A:	M16x1,5
  Pipe Ø R [mm]:	8

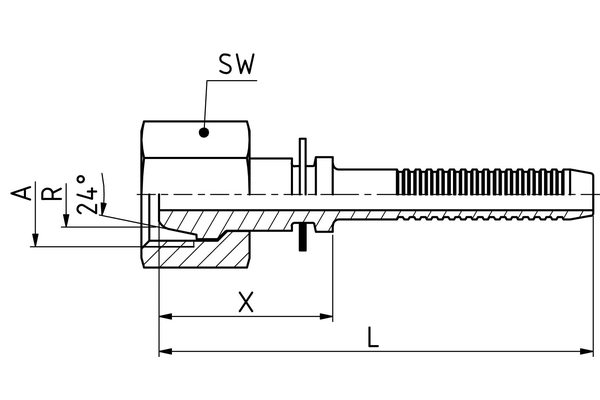

  X [mm]:	25,0
  L1 [mm]:	59,7
  SW1 [mm]:	19
  Connection name Indunorm:	MSF
  Connection type:	DKS
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	700 bar hydraulic tool series XJ
