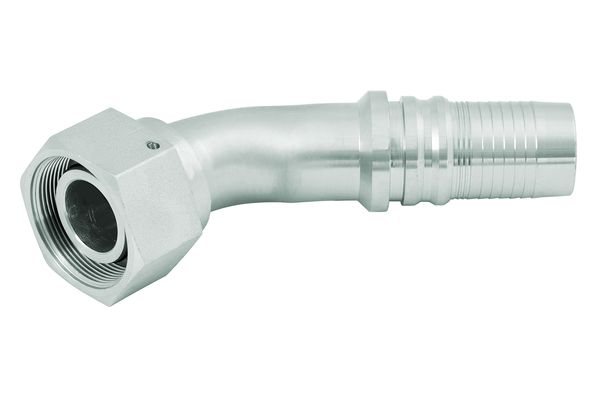

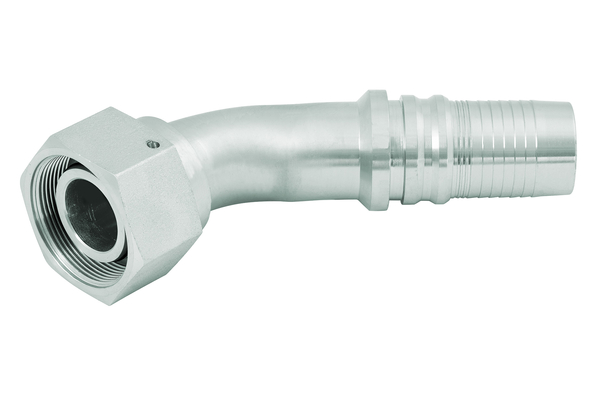

DKOS 45° (HAI)

Similar image
Similar image

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series

To accessories

Detail

Art. No.
HAI30MSOF20-45S12
%
SALE
HAI36MSOF25-45S16
%
SALE
HAI42MSOF30-45S20
%
SALE
HAI52MSOF38-45S24
%
SALE
HAI30MSOF20-45S10
%
SALE
HAI36MSOF25-45S12-46
%
SALE
HAI42MSOF30-45S16
%
SALE
HAI52MSOF38-45S20
%
SALE
HAI36MSOF25-45S12-41
%
SALE
DN
19
25
31
38
16
19
25
31
19
Thread + standard
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series

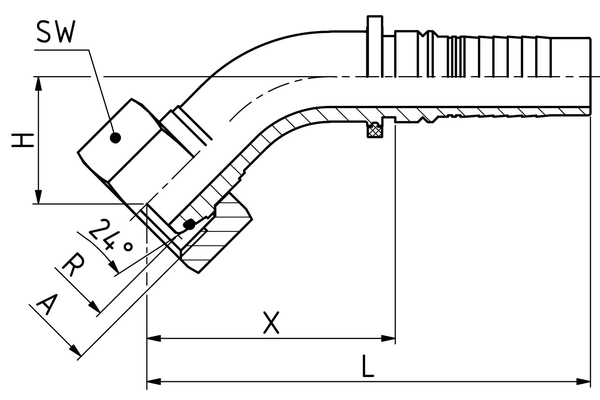

Connection thread A
M30X2
M36X2
M42x2
M52X2
M30X2
M36X2
M42X2
M52X2
M36x2
X [mm]
74,0
86,5
98,0
111,0
59,0
78,1
96,8
113,0
76,4
H [mm]
33,0
37,5
42,0
44,0
31,5
78,1
38,0
48,0
30,0
SW1 [mm]
36
46
50
60
36
46
50
60
41
Quantity


Product info

  • Technical data
    Connection name Indunorm: MSOF 45°
    Connection type: DKOS 45°
    Construction form: 45°
    Material: Free cutting steel, O-Ring: NBR
    Type of fittings: Multispiral series HAI

Practical tip

For a easy nipple assembly with little effort our nipple assembly tool is recommended. Article number: NEV6-50H-2
