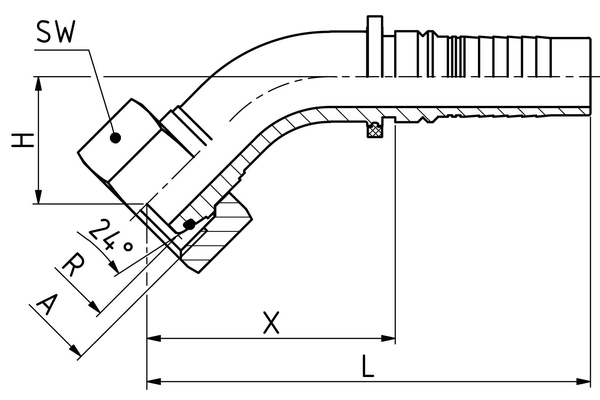

HAI36MSOF25-45S12-41
DKOS 45° MSOF 45°

Product info

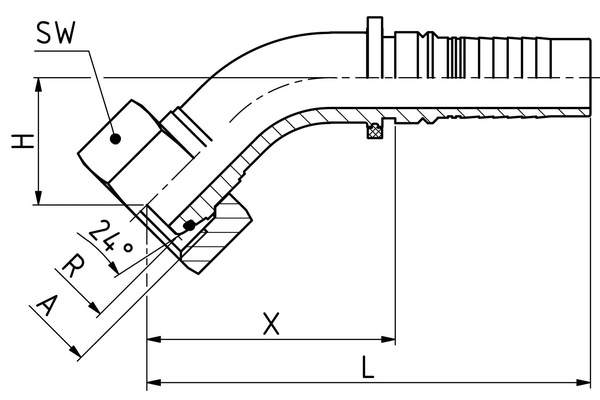

• Technical data

  DN:	19
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
  Connection thread A:	M36x2
  X [mm]:	76,4
  H [mm]:	30,0
  SW1 [mm]:	41
  Connection name Indunorm:	MSOF 45°
  Connection type:	DKOS 45°
  Construction form:	45°
  Material:	Free cutting steel, O-Ring: NBR
  Type of fittings:	Multispiral series HAI
