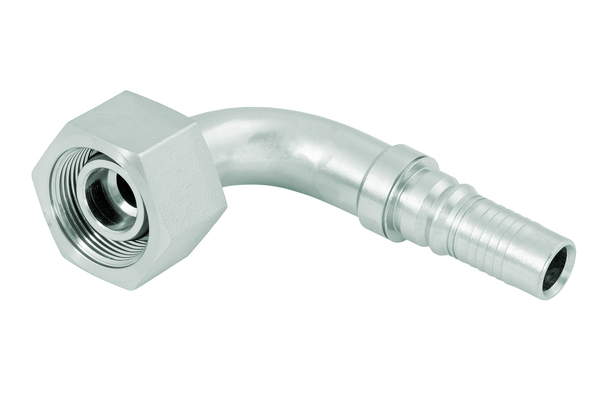

DKOS 90° (HAI)

Similar image
Similar image

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series

To accessories

Detail

Art. No.
HAI30MSOF20-90S12
%
SALE
HAI36MSOF25-90S16
%
SALE
HAI42MSOF30-90S20
%
SALE
HAI52MSOF38-90S24
%
SALE
HAI30MSOF20-90S10
%
SALE
HAI36MSOF25-90S12
%
SALE
HAI42MSOF30-90S16
%
SALE
HAI52MSOF38-90S20
%
SALE
DN
19
25
25
38
16
19
25
31
Thread + standard
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series

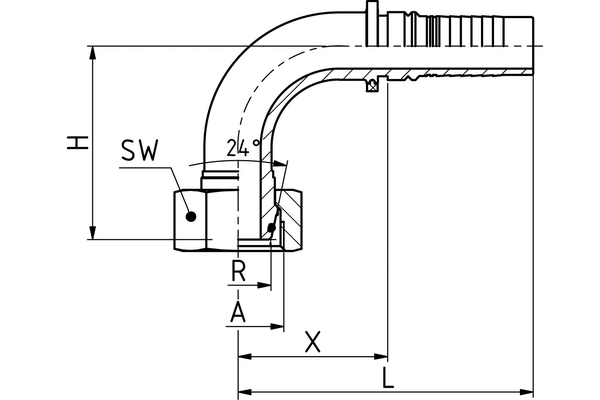

Connection thread A
M30X2
M36X1,5
M42x2
M52X2
M30X2
M36x2
M42X2
M52X2
X [mm]
61,0
76,5
87,0
100,5
48,0
61,7
86,4
90,9
H [mm]
67,5
82,0
90,0
102,0
59,0
65,0
79,0
101,0
SW1 [mm]
36
46
50
60
36
46
50
60
Quantity


Product info

  • Technical data
    Connection name Indunorm: MSOF 90°
    Connection type: DKOS 90°
    Construction form: 90°
    Material: Free cutting steel, O-Ring: NBR
    Type of fittings: Multispiral series HAI

Practical tip

For a easy nipple assembly with little effort our nipple assembly tool is recommended. Article number: NEV6-50H-2
