HAI42MSOF30-90S20
DKOS 90° MSOF 90°

Product info

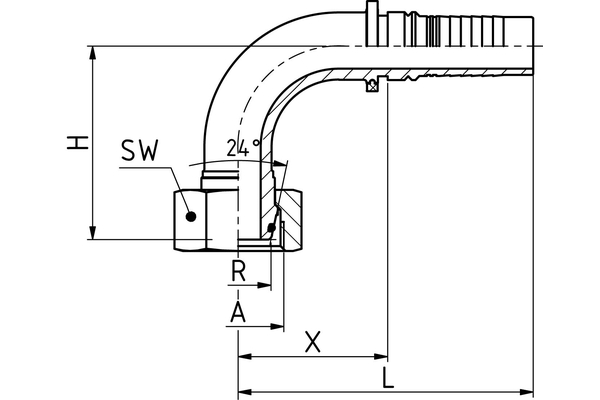

• Technical data

  DN:	25
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
  Connection thread A:	M42x2
  X [mm]:	87,0
  H [mm]:	90,0
  SW1 [mm]:	50
  Connection name Indunorm:	MSOF 90°
  Connection type:	DKOS 90°
  Construction form:	90°
  Material:	Free cutting steel, O-Ring: NBR
  Type of fittings:	Multispiral series HAI
