Art. No.: HAI12SFH9-45S12
List number: 03511210

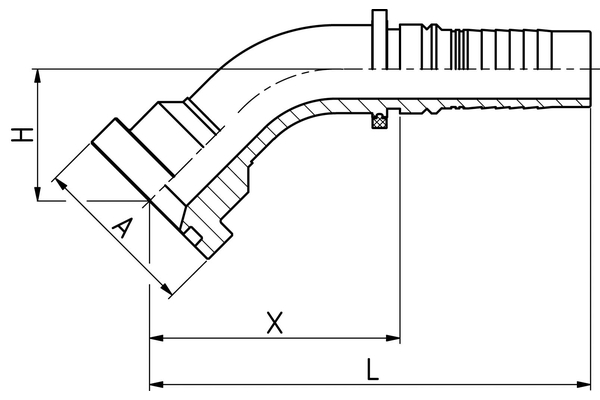

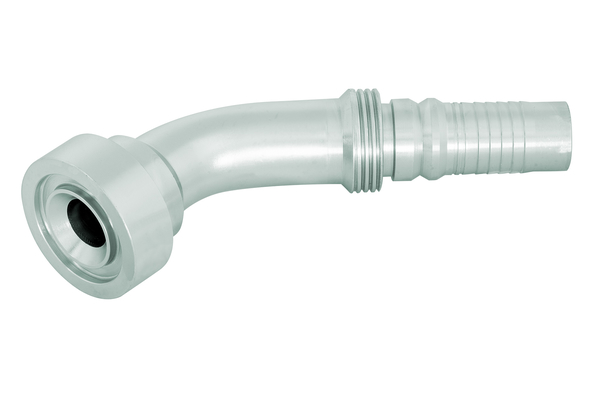

Flange head (CAT) high pressure series
| DN: | 19 |
| Thread + standard: | Flange head (CAT) high pressure series |
| Connection thread A: | 3/4" |
| X [mm]: | 83,0 |
| H [mm]: | 34,0 |
| Connection name Indunorm: | SFH 9 - 45° |
| Connection type: | SFS CAT 45° |
| Construction form: | 45° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI |
Reserve technical changes.
