SFS CAT 45°

Similar image
Similar image

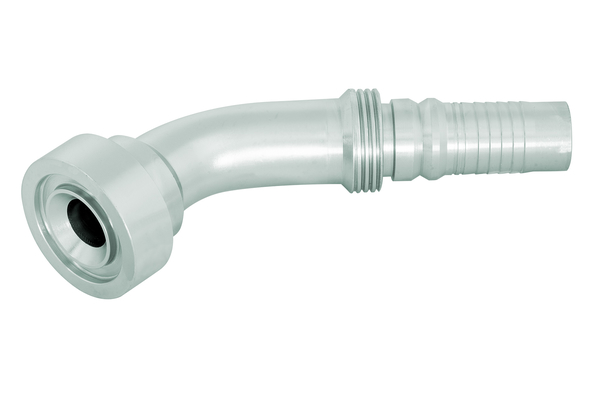

Flange head (CAT) high pressure series

To accessories

Detail

Art. No.
HAI12SFH9-45S12
%
SALE
HAI16SFH9-45S12
%
SALE
HAI16SFH9-45S16
%
SALE
HAI20SFH9-45S16
%
SALE
HAI20SFH9-45S20
%
SALE
HAI24SFH9-45S20
%
SALE
DN
19
19
25
25
31
31
Thread + standard
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Flange head (CAT) high pressure series
Connection thread A
3/4"
3/4"
1"
1-1/4"
1-1/4"
1-1/2"

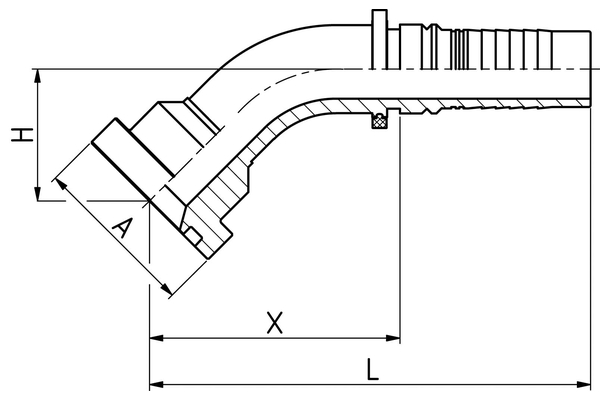

X [mm]
83,0
87,4
93,9
95,4
103,6
110,1
H [mm]
34,0
34,0
40,0
40,0
43,0
49,5
Quantity


Product info

  • Technical data
    Connection name Indunorm: SFH 9 - 45°
    Connection type: SFS CAT 45°
    Construction form: 45°
    Material: Free cutting steel
    Type of fittings: Multispiral series HAI
