Art. No.: HAI24SFH9-45S20
List number: 03511260

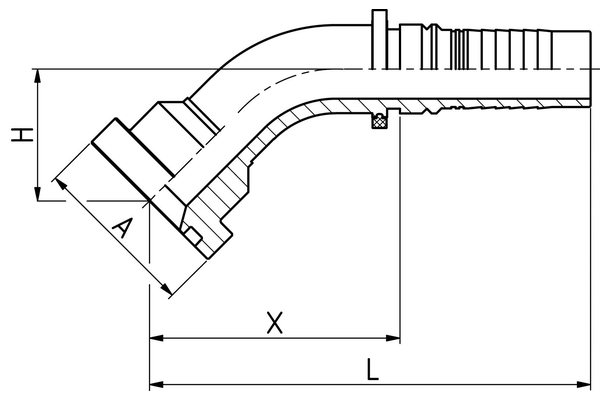

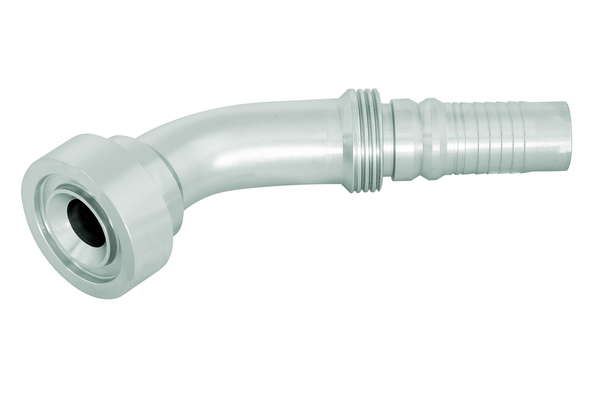

Flange head (CAT) high pressure series
| DN: | 31 |
| Thread + standard: | Flange head (CAT) high pressure series |
| Connection thread A: | 1-1/2" |
| X [mm]: | 110,1 |
| H [mm]: | 49,5 |
| Connection name Indunorm: | SFH 9 - 45° |
| Connection type: | SFS CAT 45° |
| Construction form: | 45° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI |
Reserve technical changes.
