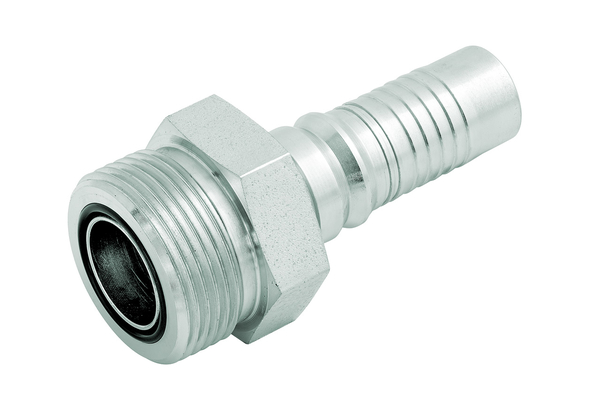

ORFS with male thread (HAI)

Similar image
Similar image

ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread

To accessories

Detail

Art. No.
HAI16ORM12DH
%
SALE
HAI16ORM16DH
%
SALE
HAI20ORM16DH
%
SALE
DN
19
25
25
Thread + standard
ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread
ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread
ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread

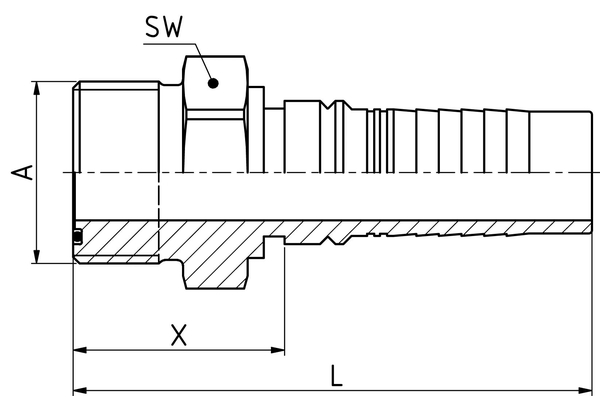

Connection thread A
1.7/16"-12 UN
1.7/16"-12
1.11/16"-12 UN
X [mm]
34,6
35,8
37,9
SW1 [mm]
38
38
46
Quantity


Product info

  • Technical data
    Connection name Indunorm: ORM
    Connection type: ORFS with male thread
    Construction form: 0°
    Material: Free cutting steel
    Type of fittings: Multispiral series HAI
