Art. No.: HAI16ORM12DH
List number: 03360010

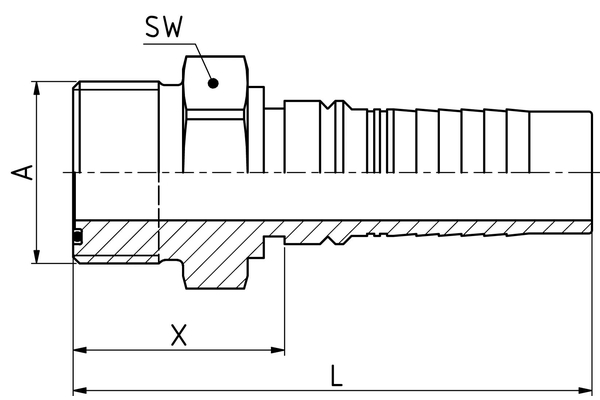

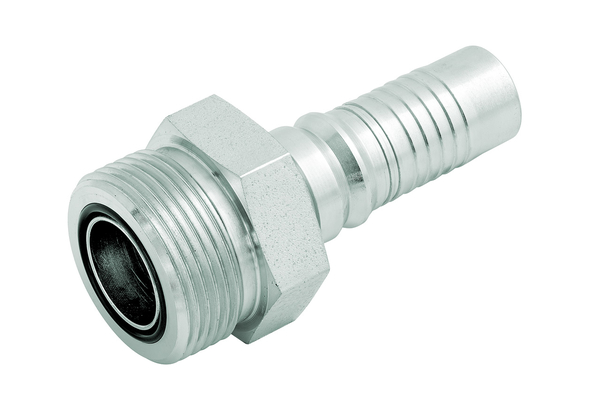

ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread
| DN: | 19 |
| Thread + standard: | ORFS Sealing form, male thread with frontal O-ring, UN / UNF / UNS-Thread |
| Connection thread A: | 1.7/16"-12 UN |
| X [mm]: | 34,6 |
| SW1 [mm]: | 38 |
| Connection name Indunorm: | ORM |
| Connection type: | ORFS with male thread |
| Construction form: | 0° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI |
Reserve technical changes.
