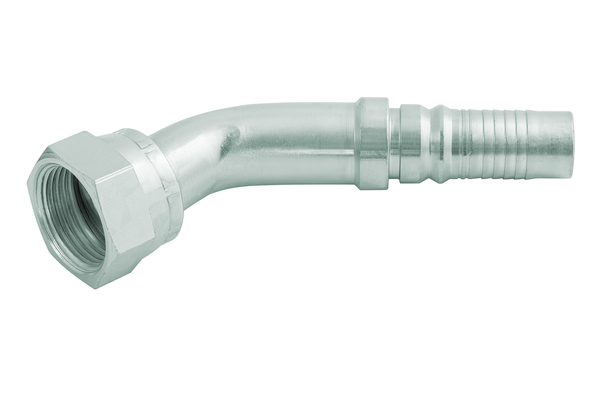

ORFS 45° with swivel nut (HAI)

Similar image
Similar image

ORFS sealing form, with union nut, UN / UNF / UNS-Thread

To accessories

Detail

Art. No.
HAI12LORF45S12
%
SALE
HAI16LORF45S12
%
SALE
HAI16LORF45S16
%
SALE
HAI20LORF45S16
%
SALE
HAI20LORF45S20
%
SALE
DN
19
19
25
25
31
Thread + standard
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face
UN/UNF female thread, flat face

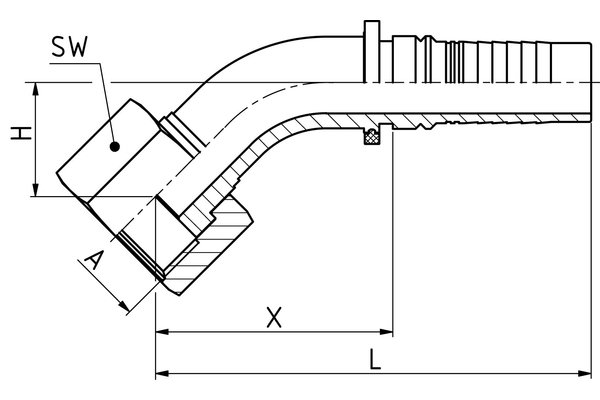

Connection thread A
1.3/16"-12
1.7/16"-12
1.7/16"-12
1.11/16"-12
1.11/16"-12
X [mm]
78,0
68,4
114,0
83,4
100,7
H [mm]
26,0
28,0
28,0
28,0
33,0
SW1 [mm]
36
41
41
50
50
Quantity


Product info

  • Technical data
    Connection name Indunorm: LORF 45°
    Connection type: ORFS with swivel nut 45°
    Construction form: 45°
    Material: Free cutting steel
    Type of fittings: Multispiral series HAI
