Art. No.: HAI16LORF45S12
List number: 03660450

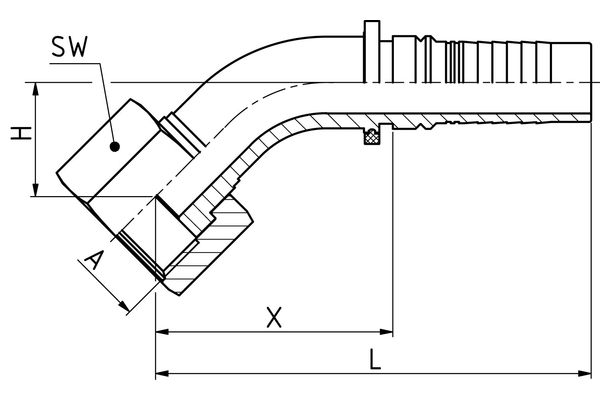

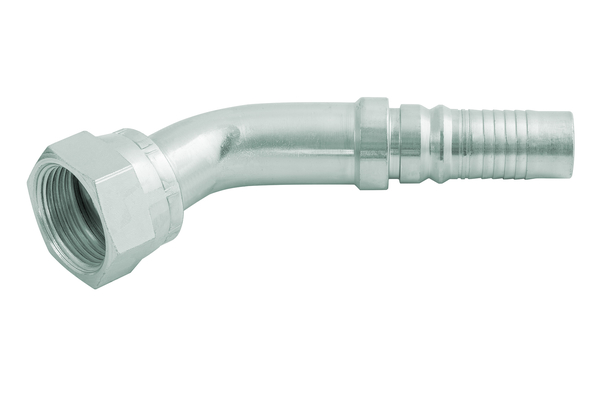

ORFS sealing form, with union nut, UN / UNF / UNS-Thread
| DN: | 19 |
| Thread + standard: | UN/UNF female thread, flat face |
| Connection thread A: | 1.7/16"-12 |
| X [mm]: | 68,4 |
| H [mm]: | 28,0 |
| SW1 [mm]: | 41 |
| Connection name Indunorm: | LORF 45° |
| Connection type: | ORFS with swivel nut 45° |
| Construction form: | 45° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HAI |
Reserve technical changes.
