HNS30MSOF20-45S12
DKOS 45° MSOF 90°

Product info

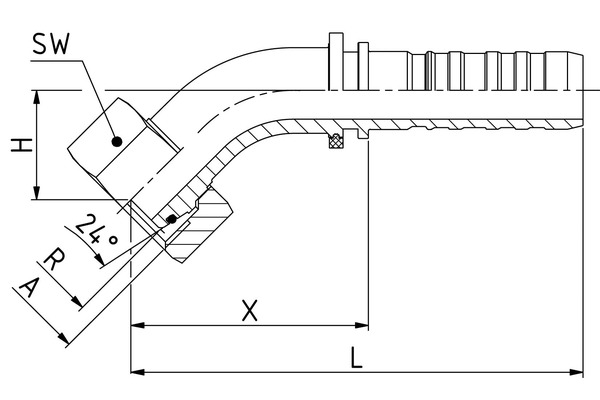

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4"
  Connection thread A:	M30x2,0
  Pipe Ø R [mm]:	20
  X [mm]:	74,0
  H [mm]:	33,0
  SW1 [mm]:	36
  Connection name Indunorm:	MSOF 45°
  Connection type:	DKOS 45°
  Construction form:	45°
  Material:	Free cutting sT-l
  Material:	Free cutting sT-l
  Type of fittings:	Multi spiral program HNS fittings (no skive)
  degree:	90
