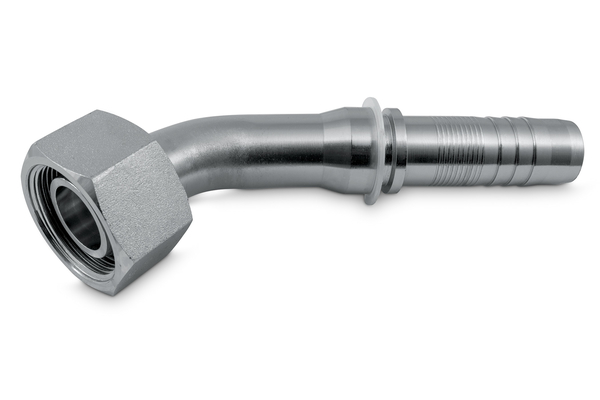

DKOS 45° (HNS)

Similar image
Similar image

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series

To accessories

Detail

Art. No.
HNS30MSOF20-45S12
%
SALE
HNS36MSOF25-45S12
%
SALE
HNS36MSOF25-45S16
%
SALE
HNS42MSOF30-45S16
%
SALE
HNS52MSOF38-45S20
%
SALE
HNS52MSOF38-45S24
%
SALE
DN
19
19
25
25
31
31
Size
12
12
16
16
20
20
Inch
3/4"
3/4"
1"
1"
1.1/4"
1.1/4"
Connection thread A
M30x2,0
M36x2,0
M36x2,0
M42x2,0
M52x2,0
M52x2,0

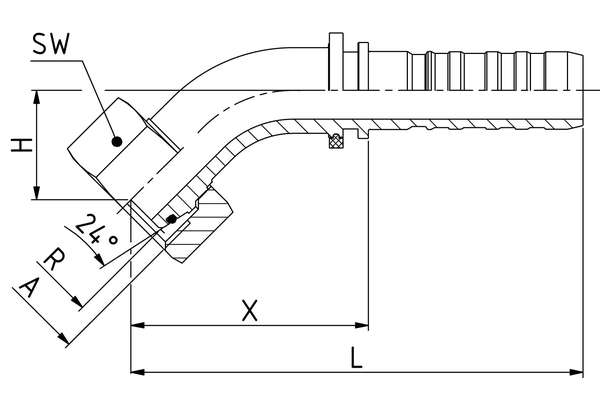

Pipe Ø R [mm]
20
25
25
30
38
38
X [mm]
74,0
71,0
94,0
110,0
111,0
-
H [mm]
33,0
33,0
37,5
35,5
45,0
-
SW1 [mm]
36
46
46
50
60
60
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MSOF 45°
    Connection type: DKOS 45°
    Construction form: 45°
    Material: Free cutting sT-l
    Material: Free cutting sT-l
    Type of fittings: Multi spiral program HNS fittings (no skive)

Benefit

The ISOFLEX6000 hose does not have to be peeled!

Practical tip

At higher temperatures the NBR O-ring can easily be replaced by a Viton(R) O-ring, see XV-SET-OR..L/S-V.
