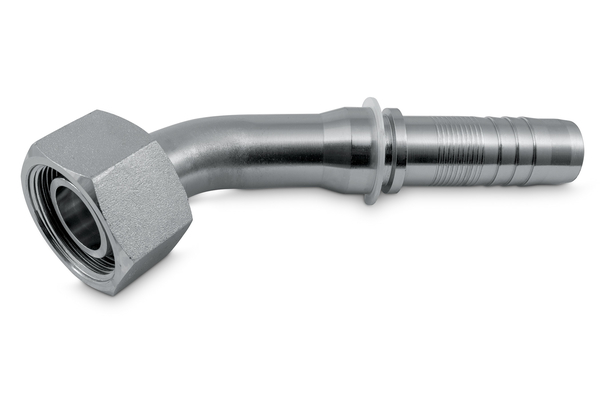

HNS42MSOF30-45S16
DKOS 45° MSOF 90°

Product info

• Technical data

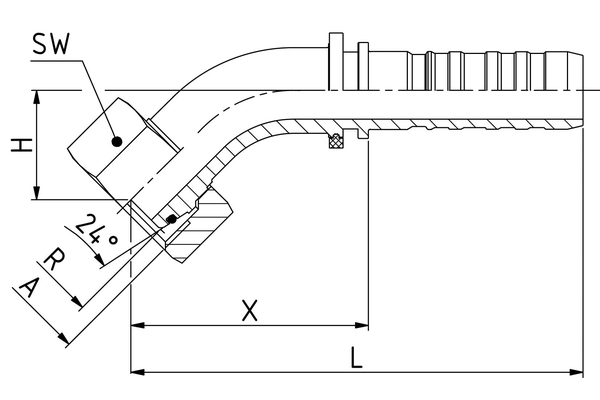

  DN:	25
  Size:	16
  Inch:	1"
  Connection thread A:	M42x2,0
  Pipe Ø R [mm]:	30
  X [mm]:	110,0
  H [mm]:	35,5
  SW1 [mm]:	50
  Connection name Indunorm:	MSOF 45°
  Connection type:	DKOS 45°
  Construction form:	45°
  Material:	Free cutting sT-l
  Material:	Free cutting sT-l
  Type of fittings:	Multi spiral program HNS fittings (no skive)
  degree:	90
