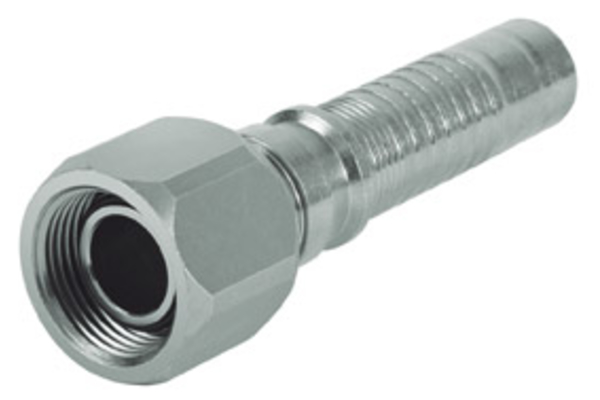

HV12BOF12
DKOR BOF

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4
  Thread + standard:	BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
  Connection thread A:	G 3/4"

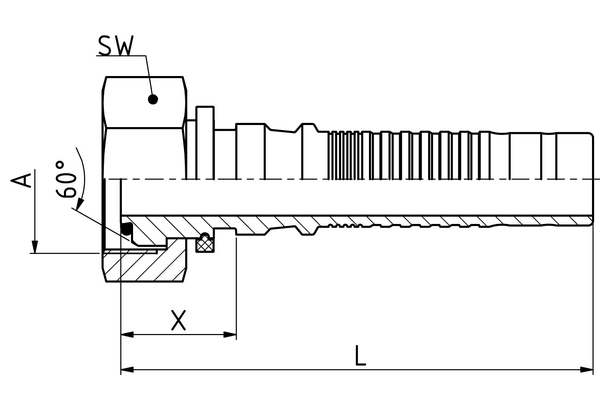

  X [mm]:	28,0
  L1 [mm]:	95,5
  Height O-ring [mm]:	1,6
  SW1 [mm]:	32
  d [mm]:	17,1
  Connection name Indunorm:	BOF
  Connection type:	DKOR
  Construction form:	0°
  Material:	Free cutting steel, O-Ring: NBR
  Material O-Ring:	NBR
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
