DKOR (HV)

Similar image
Similar image

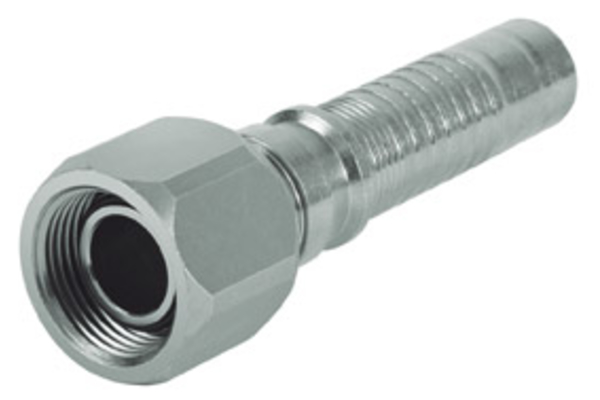

BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread

To accessories

Detail

Art. No.
HV12BOF12
%
SALE
HV16BOF16
%
SALE
HV20BOF20
%
SALE
DN
19
25
31
Size
12
16
20
Inch
3/4
1
1.1/4
Thread + standard
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread

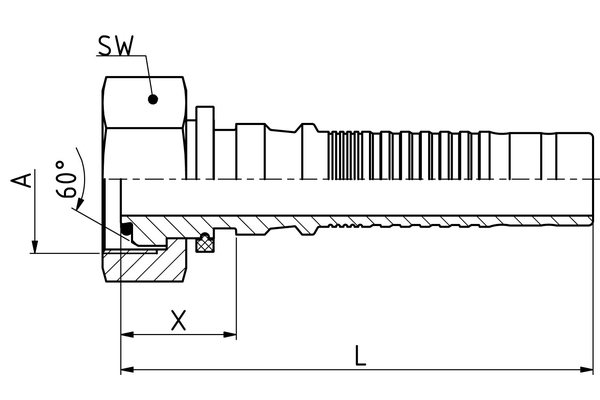

Connection thread A
G 3/4"
G 1"
G 1.1/4"
X [mm]
28,0
31,0
33,5
L1 [mm]
95,5
110,5
111,5
Outer diameter O-ring [mm]
22,1
27,1
Height O-ring [mm]
1,6
1,6
1,6
SW1 [mm]
32
41
50
d [mm]
17,1
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: BOF
    Connection type: DKOR
    Construction form: 0°
    Material: Free cutting steel, O-Ring: NBR
    Material O-Ring: NBR
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: ZnNi
    Type of fittings: Multispiral series HV
