HV20BOF20
DKOR BOF

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4

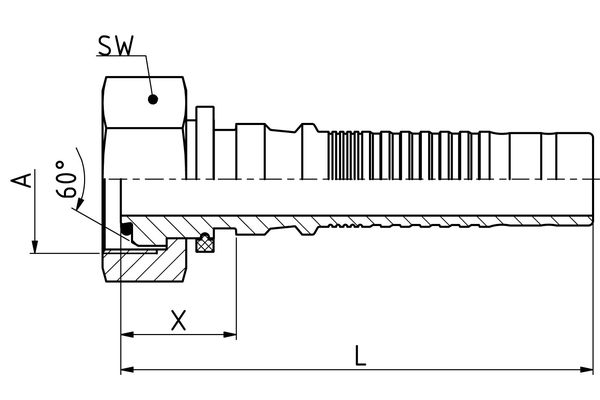

  Thread + standard:	BSP sealing head, 60 ° cone with o-ring and union nut, BSP thread
  Connection thread A:	G 1.1/4"
  X [mm]:	33,5
  L1 [mm]:	111,5
  Outer diameter O-ring [mm]:	27,1
  Height O-ring [mm]:	1,6
  SW1 [mm]:	50
  Connection name Indunorm:	BOF
  Connection type:	DKOR
  Construction form:	0°
  Material:	Free cutting steel, O-Ring: NBR
  Material O-Ring:	NBR
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
