HV20MSOF12-06
DKOS MSOF

Product info

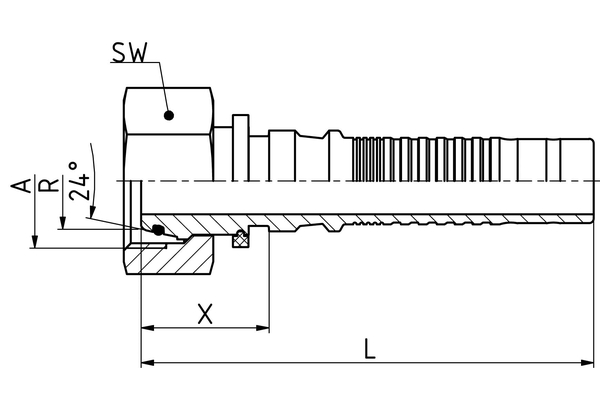

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
  Connection thread A:	M22x1,5
  X [mm]:	29,0
  L1 [mm]:	70,5
  L [mm]:	70,5
  SW1 [mm]:	27
  Type of nut:	Union nut
  Connection name Indunorm:	MSOF
  Connection type:	DKOS
  Construction form:	0°
  Material:	Free cutting steel, O-Ring: NBR
  Material O-Ring:	NBR
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
