DKOS (HV)

Similar image
Similar image

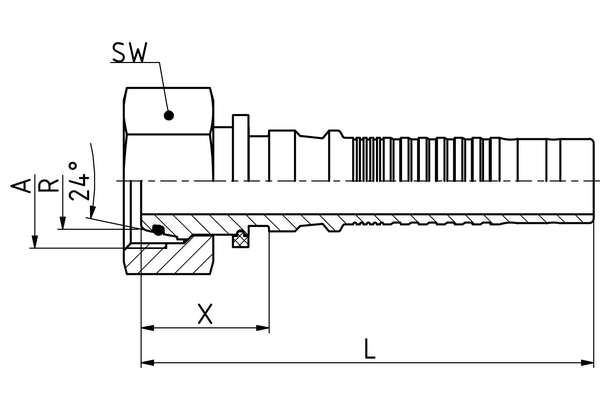

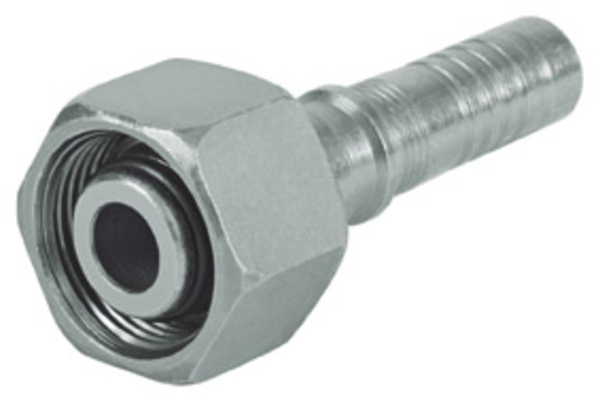

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series

To accessories

Detail

Art. No.
HV20MSOF12-06
%
SALE
HV30MSOF20-10
%
SALE
HV36MSOF25-10
%
SALE
HV30MSOF20-12
%
SALE
HV36MSOF25-12
%
SALE
HV36MSOF25-12-41
%
SALE
HV42MSOF30-12
%
SALE
HV36MSOF25-16
%
SALE
HV42MSOF30-16
%
SALE
HV52MSOF38-16
%
SALE
HV42MSOF30-20
%
SALE
HV52MSOF38-20
%
SALE
HV24MSOF16-08
%
SALE
DN
10
16
16
19
19
19
19
25
25
25
31
31
12
Size
06
10
10
12
12
12
12
16
16
16
20
20
Inch
3/8
5/8
5/8
3/4
3/4
3/4
3/4
1
1
1
1.1/4
1.1/4
Thread + standard
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
Connection thread A
M22x1,5
M30x2
M36x2
M30x2
M36x2
M36x2
M42x2
M36x2
M42x2
M52x2
M42x2
M52x2
M24x1,5
X [mm]
29,0
32,5
35,5
30,5
35,5
35,5
37,5
64,0
37,5
41,0
33,5
41,5
L1 [mm]
70,5
90,0
93,0
103,0
108,0
108,0
110,0
143,5
117,0
120,5
111,5
119,5
Outer diameter O-ring [mm]
17,5
22,0
17,5
22,0
22,0
27,0
22,0
27,0
33,0
27,0
33,0
L [mm]
70,5
SW1 [mm]
27
36
41
36
46
41
50
46
50
60
50
60
30
Type of nut
Union nut
Union nut
Union nut
ST
Union nut
Union nut
Union nut
Union nut
Union nut
Union nut
ST
Union nut
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MSOF
    Connection type: DKOS
    Construction form: 0°
    Material: Free cutting steel, O-Ring: NBR
    Material O-Ring: NBR
    Resistance against red rust [h]: 720
    Resistance against white rust [h]: 120
    Surface: ZnNi
    Type of fittings: Multispiral series HV

Practical tip

For a easy nipple assembly with little effort our nipple assembly tool is recommended. Article number: NEV6-50H-2
