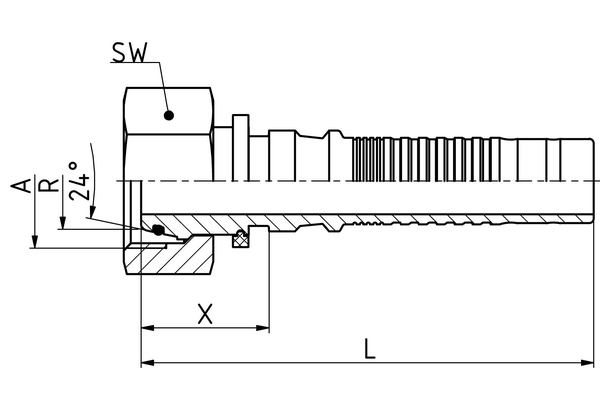

HV52MSOF38-16
DKOS MSOF

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut heavy series
  Connection thread A:	M52x2
  X [mm]:	41,0
  L1 [mm]:	120,5
  Outer diameter O-ring [mm]:	33,0
  SW1 [mm]:	60
  Type of nut:	Union nut
  Connection name Indunorm:	MSOF
  Connection type:	DKOS
  Construction form:	0°
  Material:	Free cutting steel, O-Ring: NBR
  Material O-Ring:	NBR
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
