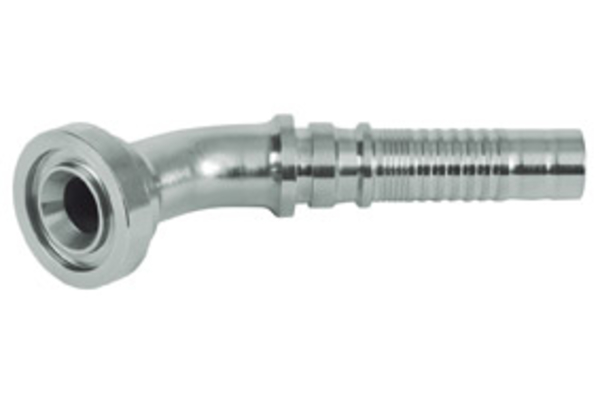

SFL 3000 PSI 45° (HV)

Similar image
Similar image

Flange head SAE J518 (ISO 6162) standard series 3000 PSI

To accessories

Detail

Art. No.
HV-S12SFH45S12
%
SALE
HV16SFH45S12
%
SALE
HV12SFH45S16
%
SALE
HV-S16SFH45S16
%
SALE
HV20SFH45S16
%
SALE
HV16SFH45S20
%
SALE
HV-S20SFH45S20
%
SALE
DN
19
19
25
25
25
31
31
Size
12
12
16
16
16
20
20
Inch
3/4
3/4
1
1
1
1.1/4
1.1/4
Thread + standard
Flange head SAE J518 (ISO 6162) standard series 3000 PSI
Flange head SAE J518 (ISO 6162) standard series 3000 PSI
Flange head SAE J518 (ISO 6162) standard series 3000 PSI
Flange head SAE J518 (ISO 6162) standard series 3000 PSI
Flange head SAE J518 (ISO 6162) standard series 3000 PSI
Flange head SAE J518 (ISO 6162) standard series 3000 PSI
Flange head SAE J518 (ISO 6162) standard series 3000 PSI
Flange size D2
3/4"
1"
3/4"
1"
1.1/4"
1"
1.1/4"

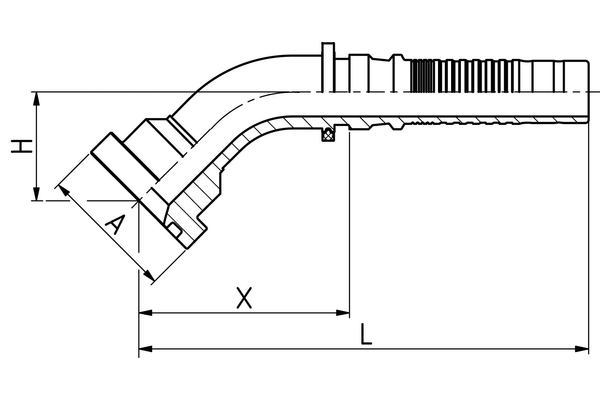

X [mm]
61,0
74,5
78,0
80,5
88,0
90,5
106,0
L1 [mm]
133,5
147,0
157,5
160,0
167,5
168,5
184,0
H [mm]
30,0
29,5
30,0
35,0
33,5
33,5
38,5
D2 [mm]
38,1
44,5
38,1
44,5
50,8
44,5
50,8
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: SFH 45°
    Connection type: SFL 3.000 PSI 45°
    Construction form: 45°
    Material: Free cutting steel
    Resistance against red rust [h]: 720
    Resistance against white rust [h]: 120
    Surface: ZnNi
    Type of fittings: Multispiral series HV

Practical tip

Special lengths are available according to your requirements.
