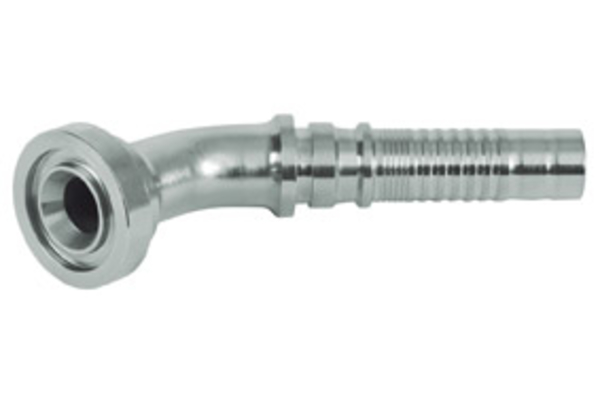

HV16SFH45S20
SFL 3.000 PSI 45° SFH 45°

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	Flange head SAE J518 (ISO 6162) standard series 3000 PSI
  Flange size D2:	1"

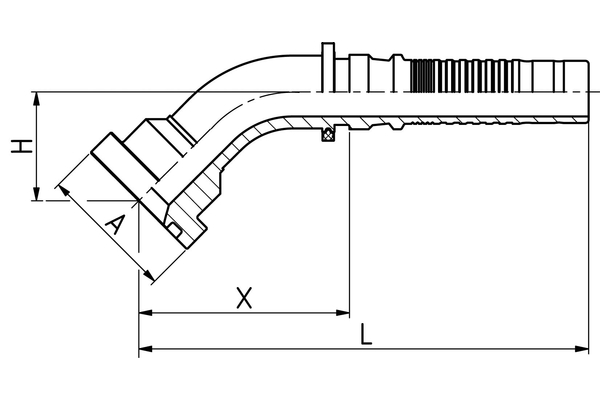

  X [mm]:	90,5
  L1 [mm]:	168,5
  H [mm]:	33,5
  D2 [mm]:	44,5
  Connection name Indunorm:	SFH 45°
  Connection type:	SFL 3.000 PSI 45°
  Construction form:	45°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
