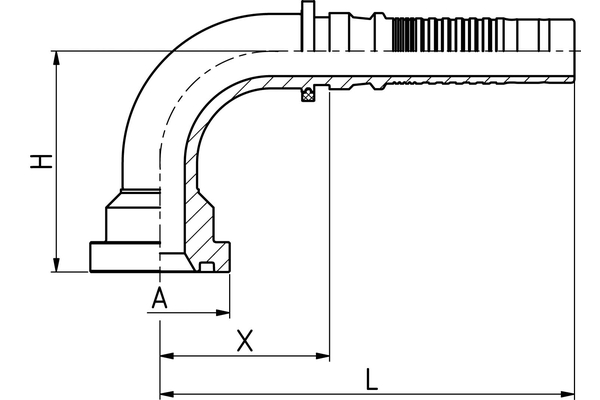

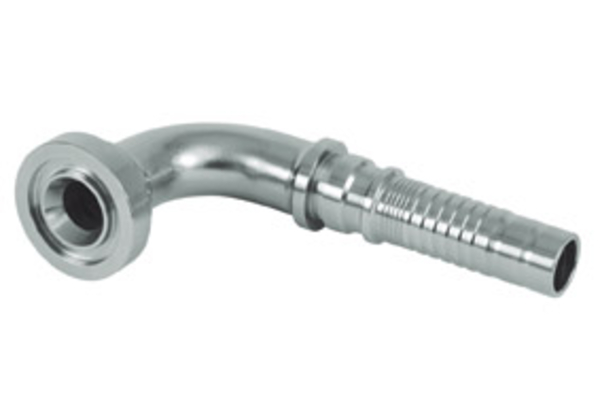

SFS 6000 PSI 90° (HV)

Similar image
Similar image

Flange head SAE J518 (ISO 6162) high pressure series 6.000 PSI

To accessories

Detail

Art. No.
HV-S12SFH6-90S08
%
SALE
HV-S12SFH6-90S10
%
SALE
HV-S16SFH6-90S10
%
SALE
HV-S12SFH6-90S12
%
SALE
HV-S16SFH6-90S12
%
SALE
HV-S12SFH6-90S16
%
SALE
HV-S16SFH6-90S16
%
SALE
HV-S20SFH6-90S16
%
SALE
HV-S16SFH6-90S20
%
SALE
HV-S20SFH6-90S20
%
SALE
HV-S24SFH6-90S20
%
SALE
DN
12
16
16
19
19
25
25
25
31
31
31
Size
08
10
10
12
12
16
16
16
20
20
20
Inch
1/2
5/8
5/8
3/4
3/4
1
1
1
1.1/4
1.1/4
1.1/4
Thread + standard
Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
Flange size D2
3/4"
3/4"
1"
3/4"
1"
3/4"
1"
1.1/4"
1"
1.1/4"
1.1/2"
X [mm]
41,5
50,5
50,5
52,5
54,5
69,0
69,0
68,5
93,0
91,0
89,5
L1 [mm]
88,5
108,0
108,0
125,0
127,0
148,5
148,5
148,0
171,0
169,0
167,5
H [mm]
50,0
52,5
57,0
59,0
61,5
70,5
73,0
81,5
95,0
85,0
97,0
D2 [mm]
41,3
41,3
47,6
41,3
47,6
41,3
47,6
54,0
47,6
54,0
63,5
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: SFH 6 - 90°
    Connection type: SFS 6000 PSI 90°
    Construction form: 90°
    Material: Free cutting steel
    Resistance against red rust [h]: 720
    Resistance against white rust [h]: 120
    Surface: ZnNi
    Type of fittings: Multispiral series HV

Practical tip

Special lengths are available according to your requirements.
