HV-S24SFH6-90S20
SFS 6.000 PSI 90° SFH 6 - 90°

Product info

• Technical data

  DN:	31
  Size:	20
  Inch:	1.1/4
  Thread + standard:	Flange head SAE J518 (ISO 6162) high pressure series 6000 PSI
  Flange size D2:	1.1/2"

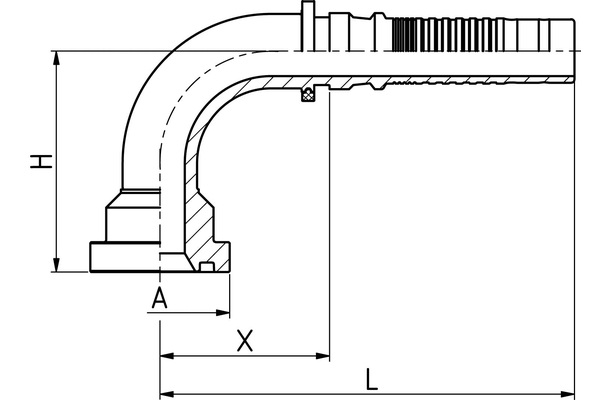

  X [mm]:	89,5
  L1 [mm]:	167,5
  H [mm]:	97,0
  D2 [mm]:	63,5
  Connection name Indunorm:	SFH 6 - 90°
  Connection type:	SFS 6000 PSI 90°
  Construction form:	90°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	ZnNi
  Type of fittings:	Multispiral series HV
  degree:	90
