Art. No.: HV12SFH9-90S12-SL129
List number: 04855870

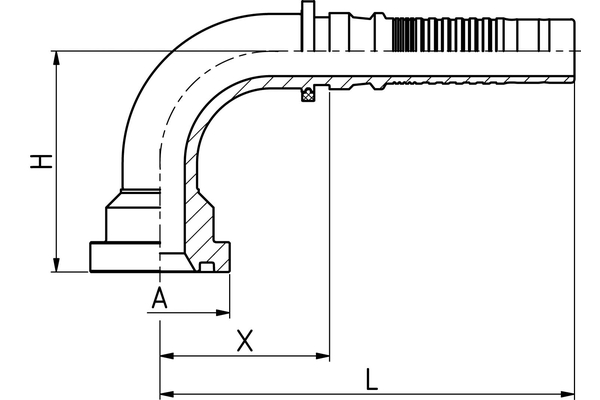

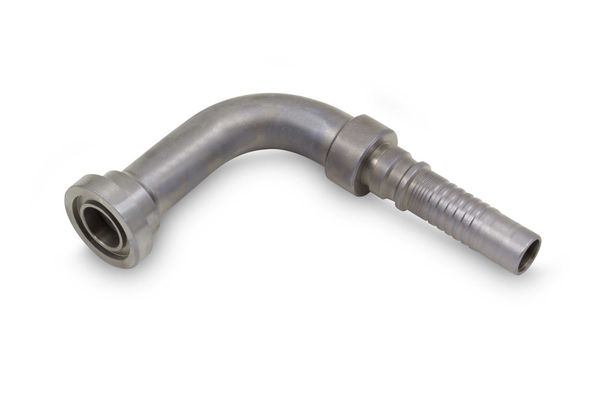

Flange head (CAT) high pressure series
| DN: | 19 |
| Size: | 12 |
| Inch: | 3/4" |
| Thread + standard: | - |
| Flange size D2: | 3/4" |
| X [mm]: | 71,0 |
| L1 [mm]: | 143,5 |
| H [mm]: | 129,0 |
| Connection name Indunorm: | SFH 9, 90° |
| Connection type: | SFS CAT 9.000 PSI 90° |
| Construction form: | 90° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HV |
| degree: | 90 |
Reserve technical changes.
