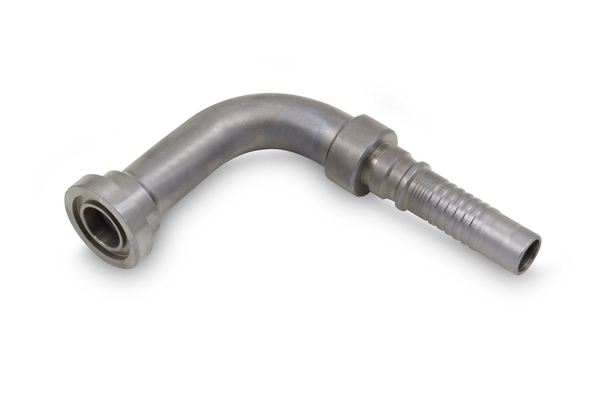

SFS CAT (HV) special leg length

Similar image
Similar image

Flange head (CAT) high pressure series

To accessories

Detail

Art. No.
HV12SFH9-90S12-SL129
%
SALE
HV16SFH9-90S16-SL132
%
SALE
HV16SFH9-90S16-SL150
%
SALE
HV20SFH9-90S20-SL150
%
SALE
HV24SFH9-90S20-SL135
%
SALE
HV16SFH9-16SL80
%
SALE
DN
19
25
25
31
31
25
Size
12
16
16
20
20
Inch
3/4"
1"
1"
1.1/4"
1.1/4"
Thread + standard
-
-
-
-
-
Flange size D2
3/4"
1"
1"
1.1/4"
1.1/2"
1"

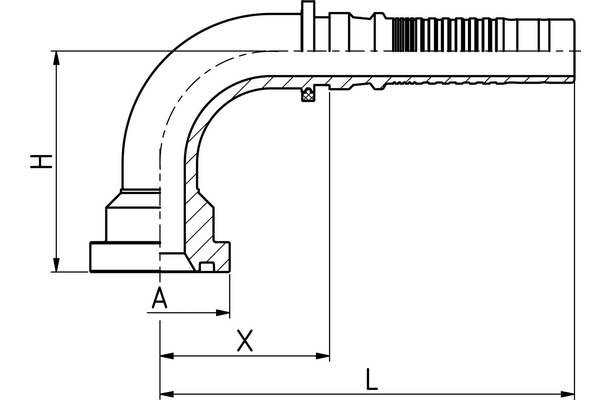

X [mm]
71,0
82,5
82,5
91,0
93,0
80,0
L1 [mm]
143,5
162,0
162,0
169,0
171,0
H [mm]
129,0
132,0
150,0
150,0
135,0
80,0
D2 [mm]
47,6
Quantity


Product info

  • Technical data
    Connection name Indunorm: SFH 9
    Connection type: SFS CAT
    Construction form: 0°
    Material: Free cutting steel
    Resistance against red rust [h]: 720
    Resistance against white rust [h]: 120
    Surface: ZnNi
    Type of fittings: Multispiral series HV
