Art. No.: HV16SFH9-16SL80
List number: 04856080

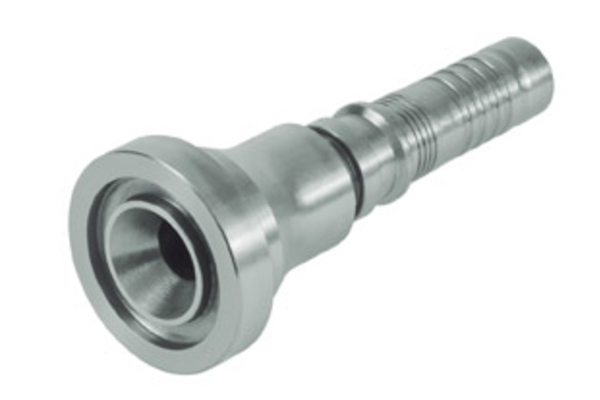

Flange head (CAT) high pressure series
| DN: | 25 |
| Flange size D2: | 1" |

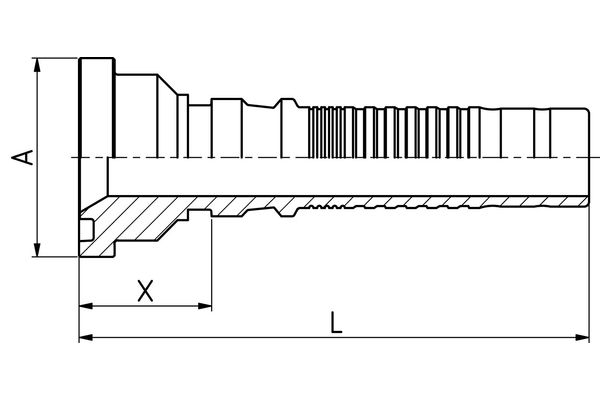

| X [mm]: | 80,0 |
| H [mm]: | 80,0 |
| D2 [mm]: | 47,6 |
| Connection name Indunorm: | SFH 9 |
| Connection type: | SFS CAT |
| Construction form: | 0° |
| Material: | Free cutting steel |
| Resistance against red rust [h]: | 720 |
| Resistance against white rust [h]: | 120 |
| Surface: | ZnNi |
| Type of fittings: | Multispiral series HV |
Reserve technical changes.
