Art. No.: HV16SFH9-90S16-SL150
List number: 04855890

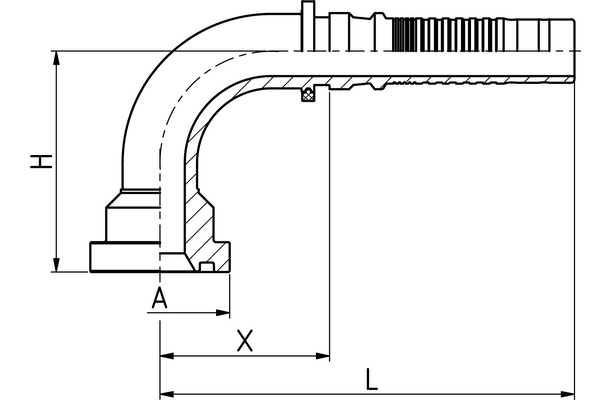

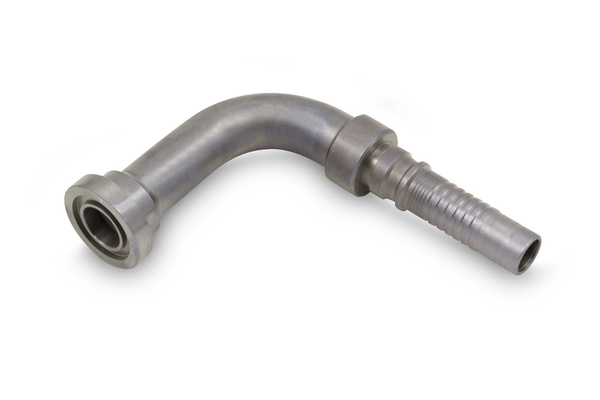

Flange head (CAT) high pressure series
| DN: | 25 |
| Size: | 16 |
| Inch: | 1" |
| Thread + standard: | - |
| Flange size D2: | 1" |
| X [mm]: | 82,5 |
| L1 [mm]: | 162,0 |
| H [mm]: | 150,0 |
| Connection name Indunorm: | SFH 9 - 90° |
| Connection type: | SFS CAT 90° |
| Construction form: | 90° |
| Material: | Free cutting steel |
| Type of fittings: | Multispiral series HV |
| degree: | 90 |
Reserve technical changes.
