VC14MSOF06-90S04
Valcon® swage fitting DKOS 90° MSOF 90°

Product info

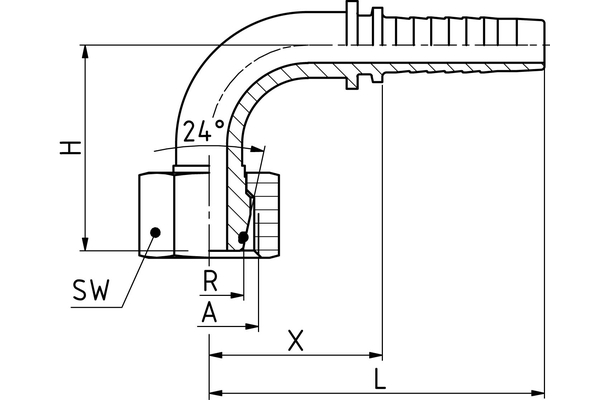

• Technical data

  DN:	6
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
  H [mm]:	26,0
  d [mm]:	6,0
  E [mm]:	17
  C [mm]:	20,3
  L [mm]:	53,5
  Connection name Indunorm:	MSOF 90°
  Connection type:	DKOS 90°
  Construction form:	90°
  Material:	Free cutting steel
  Type of fittings:	VC
