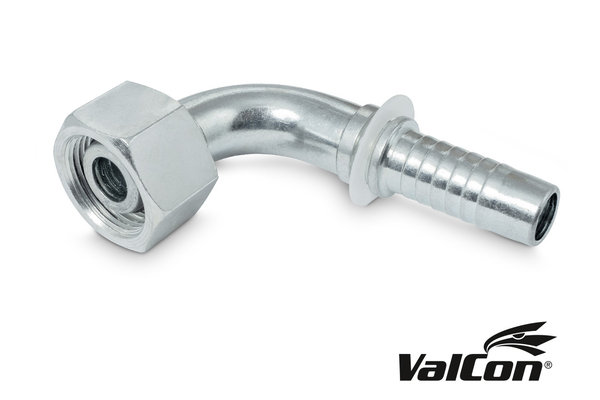

ValCon® DKOS 90°

Similar image
Similar image

Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut, heavy series

To accessories

Detail

Art. No.
VC14MSOF06-90S04
%
SALE
VC16MSOF08-90S04
%
SALE
VC18MSOF10-90S06
%
SALE
VC20MSOF12-90S06
%
SALE
VC30MSOF20-90S12
%
SALE
VC36MSOF25-90S16
%
SALE
VC18MSOF10-90S04
%
SALE
VC20MSOF12-90S05
%
SALE
VC22MSOF14-90S06
%
SALE
VC24MSOF16-90S08
%
SALE
VC30MSOF20-90S10
%
SALE
VC36MSOF25-90S12
%
SALE
VC42MSOF30-90S16
%
SALE
DN
6
6
10
10
19
25
6
8
10
12
16
19
25
Size
04
06
06
12
16
04
05
06
08
10
12
16
Inch
1/4"
3/8"
3/8"
3/4"
1"
1/4"
5/16"
3/8"
1/2"
5/8"
3/4"
1"
Thread + standard
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
Pipe Ø R [mm]
08
10
12
20
25
10
12
14
16
20
25
30
H [mm]
26,0
31,0
33,5
34,0
55,0
66,0
33,5
35,0
42,0
41,0
50,0
59,0
74,0
d [mm]
6,0
4,0
7,0
7,0
15,0
20,0
4,0
5,5
7,0
9,5
12,0
15,0
20,0
Pipe E [mm]
8
10
12
20
25
10
12
14
16
20
25
30
T
M16-1,5
M18-1,5
M20-1,5
M30-2
M36-2
M18-1,5
M20-1,5
M22-1,5
M24-1,5
M30-2
M36-2
M42-2
E [mm]
17
19
22
24
36
46
22
24
27
30
36
46
50
C [mm]
20,3
25,5
33,5
34,0
58,0
72,0
27,0
31,0
33,5
41,0
46,0
56,0
72,0
L [mm]
53,5
53,5
63,5
63,5
107,5
123,5
52,0
58,5
63,5
72,0
80,5
95,0
120,0
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: MSOF 90°
    Connection type: DKOS 90°
    Construction form: 90°
    Material: Free cutting steel
    Type of fittings: VC

Practical tip

At higher temperatures, the NBR O-ring can be replaced easily by a Viton O-ring, see XV-SET OR Rohr..L / SV.
