VC36MSOF25-90S16

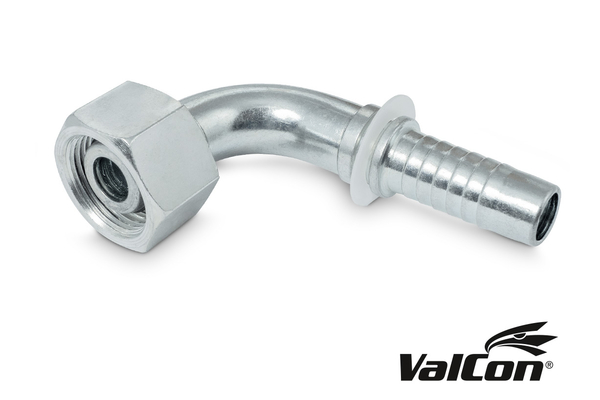

Valcon® swage fitting DKOS 90° MSOF 90°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1"
  Thread + standard:	Sealing cone with O-ring according to DIN 3865 (suitable for cone 24 ° DIN 3901 and 3902), union nut light series
  Pipe Ø R [mm]:	25
  H [mm]:	66,0
  d [mm]:	20,0
  Pipe E [mm]:	25
  T:	M36-2
  E [mm]:	46
  C [mm]:	72,0
  L [mm]:	123,5
  Connection name Indunorm:	MSOF 90°
  Connection type:	DKOS 90°
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
