ValCon® CEL

Similar image
Similar image

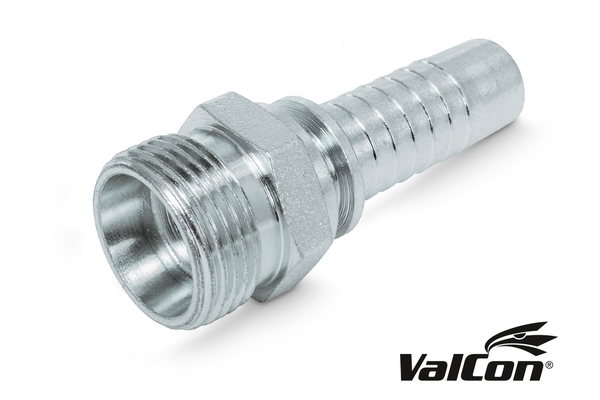

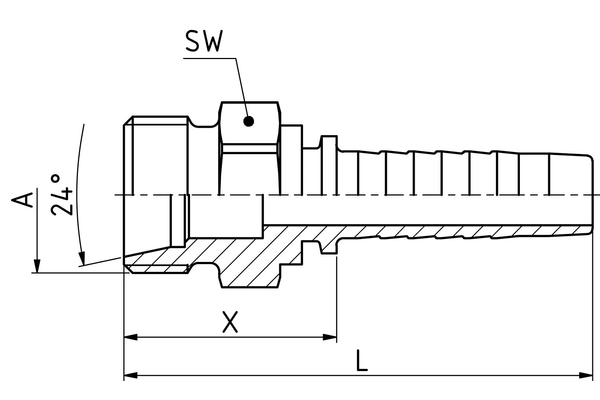

Threaded stem with bore form W (24 °) according to DIN 3861, light series

To accessories

Detail

Art. No.
VC14ME08-04
%
SALE
VC16ME10-05
%
SALE
VC16ME10-05LS
%
SALE
VC18ME12-06
%
SALE
VC18ME12-06LS
%
SALE
VC22ME15-08
%
SALE
VC26ME18-10
%
SALE
VC30ME22-12
%
SALE
VC36ME28-16
%
SALE
VC12ME06-04
%
SALE
VC16ME10-04
%
SALE
VC18ME12-04
%
SALE
VC18ME12-05
%
SALE
VC16ME10-06
%
SALE
VC16ME10-06LS
%
SALE
VC22ME15-06
%
SALE
VC18ME12-08
%
SALE
VC26ME18-08
%
SALE
VC20ME12-06LS
%
SALE
DN
6
8
8
10
10
12
16
19
25
6
6
6
8
10
10
10
12
12
10
Size
04
05
05
06
06
08
10
12
16
04
04
04
05
06
06
06
08
08
06
Inch
1/4"
5/16"
5/16"
3/8"
3/8"
1/2"
5/8"
3/4"
1"
1/4"
1/4"
1/4"
5/16"
3/8"
3/8"
3/8"
1/2"
1/2"
3/8"
Thread + standard
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
Threaded stem with bore form W (24 °) according to DIN 3861, light series
d [mm]
4,0
5,5
5,5
7,0
7,0
9,5
12,0
15,0
20,0
4,0
4,0
4,0
5,5
7,0
7,0
7,0
9,5
9,5
7,0
Pipe E [mm]
8
10
12
15
18
22
28
6
10
12
12
10
15
12
18
T
M14-1,5
M16-1,5
M16x1,5
M18-1,5
M18x1,5
M22-1,5
M26-1,5
M30-2
M36-2
M12-1,5
M16-1,5
M18-1,5
M18-1,5
M16-1,5
M16x1,5
M22-1,5
M18-1,5
M26-1,5
M20x1,5
E [mm]
14
17
17
19
19
22
27
22
36
14
17
19
19
17
17
22
19
27
22
C [mm]
22,0
23,5
25,5
27,0
24,5
26,0
27,0
33,0
32,0
23,0
23,0
24,0
26,0
23,0
24,5
25,0
25,0
27,0
26,5
L [mm]
50,5
52,0
57,0
53,5
58,0
57,5
61,5
82,5
85,5
48,0
48,0
49,0
51,5
52,5
58,0
54,5
56,5
58,5
60,0
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: ME
    Connection type: CEL
    Construction form: 0°
    Material: Free cutting steel
    Surface: CrIII
    Type of fittings: VC

Practical tip

The pre-assembly of the cutting ring should be carried out using the hardened pre-assembly socket RV..VM L / S. For assembling cutting rings properly, please refer to our installation instructions.
