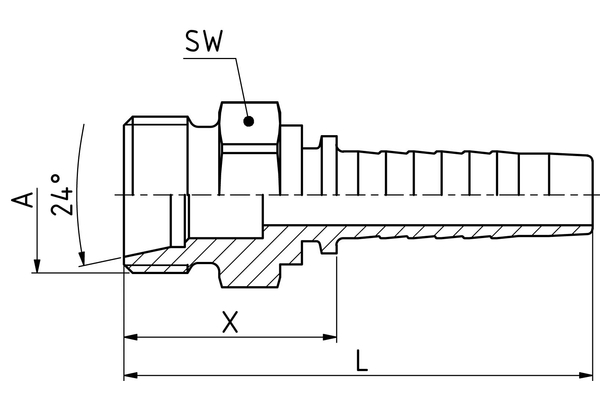

VC16ME10-04
Valcon® swage fitting CEL ME

Product info

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	Threaded stem with bore form W (24 °) according to DIN 3861, light series
  d [mm]:	4,0
  Pipe E [mm]:	10
  T:	M16-1,5
  E [mm]:	17
  C [mm]:	23,0
  L [mm]:	48,0
  Connection name Indunorm:	ME
  Connection type:	CEL
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
