ValCon® AGJ

Similar image
Similar image

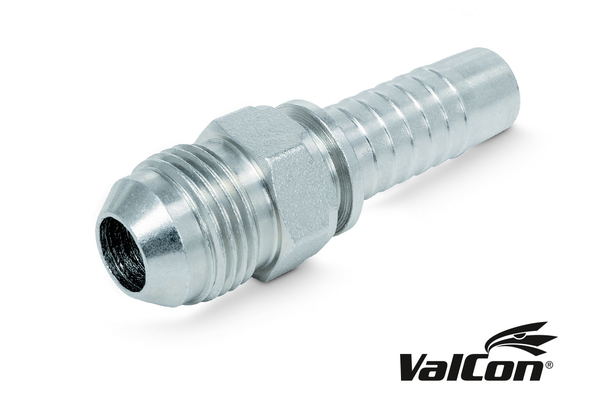

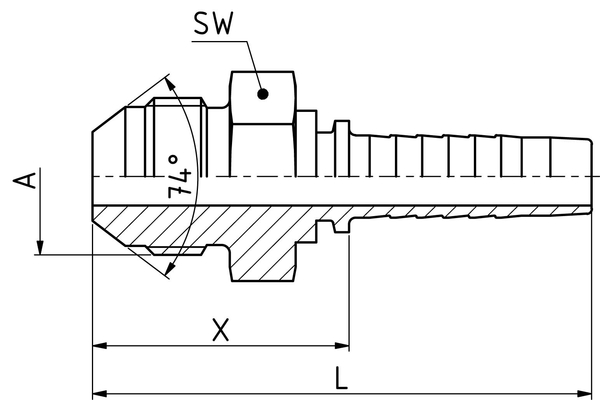

JIC threaded adapter, 74 ° cone with UN / UNF thread

To accessories

Detail

Art. No.
VC07JM04
%
SALE
VC09JM06
%
SALE
VC12JM08
%
SALE
VC14JM10
%
SALE
VC17JM10
%
SALE
VC19JM12
%
SALE
VC21JM16
%
SALE
VC08JM04
%
SALE
VC09JM04
%
SALE
VC09JM05
%
SALE
VC12JM06
%
SALE
VC14JM06
%
SALE
VC14JM08
%
SALE
VC17JM08
%
SALE
VC17JM12
%
SALE
VC21JM12
%
SALE
VC26JM16
%
SALE
DN
6
10
12
16
16
19
25
6
6
8
10
10
12
12
19
19
25
Size
04
06
08
10
10
12
16
04
04
05
06
06
08
08
12
12
16
Inch
1/4"
3/8"
1/2"
5/8"
5/8"
3/4"
1"
1/4"
1/4"
5/16"
3/8"
3/8"
1/2"
1/2"
3/4"
3/4"
1"
Thread + standard
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
JIC threaded adapter, 74 ° cone with UN / UNF thread
d [mm]
4,0
7,0
9,5
12,0
12,0
15,0
20,0
4,0
4,0
5,5
7,0
7,0
9,5
9,5
15,0
15,0
20,0
T
7/16-20
9/16-18
3/4-16
7/8-14
1.1/16-12
1.3/16-12
1.5/16-12
1/2-20
9/16-18
9/16-18
3/4-16
7/8-14
7/8-14
1.1/16-12
1.1/16-12
1.5/16-12
1.5/8-12
E [mm]
12
17
19
24
27
32
34
14
15
15
19
24
24
27
27
34
42
C [mm]
26,5
30,5
31,0
35,0
37,0
41,0
43,0
27,0
27,0
28,0
30,0
36,0
35,0
37,0
38,0
42,0
48,5
L [mm]
54,0
59,5
62,5
69,5
71,5
90,5
96,5
52,0
52,0
54,5
59,5
63,5
66,5
68,5
87,5
91,5
99,5
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: JM
    Connection type: AGJ
    Construction form: 0°
    Material: Free cutting steel
    Surface: CrIII
    Type of fittings: VC

Practical tip

"With union nut and support sleeve for flare connections. Simple flaring of pipes with the help of our flaring machine SRVBM6-42 or PF1. "
