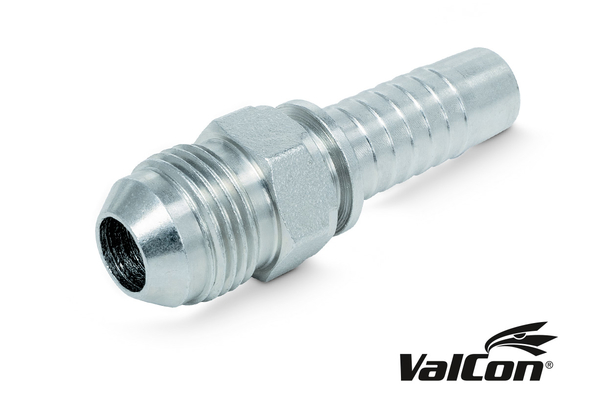

VC07JM04
Valcon® swage fitting AGJ JM

Product info

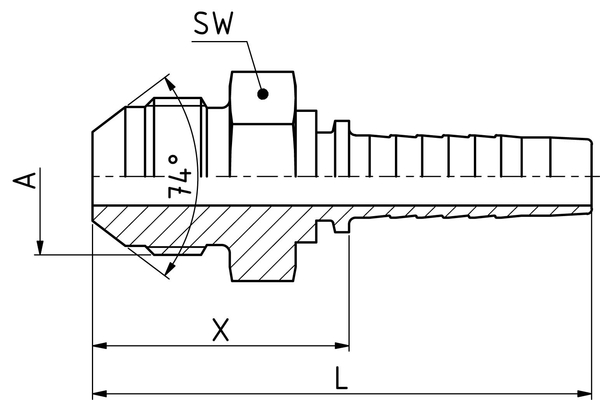

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	JIC threaded adapter, 74 ° cone with UN / UNF thread
  d [mm]:	4,0
  T:	7/16-20
  E [mm]:	12
  C [mm]:	26,5
  L [mm]:	54,0
  Connection name Indunorm:	JM
  Connection type:	AGJ
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
