VC07J45S04

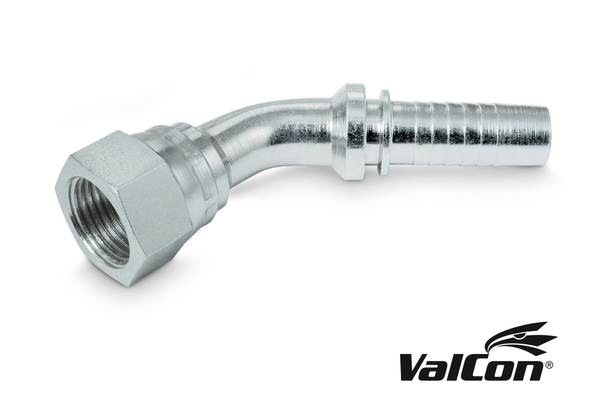

Valcon® swage fitting DKJ 45° JF 45°

Product info

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

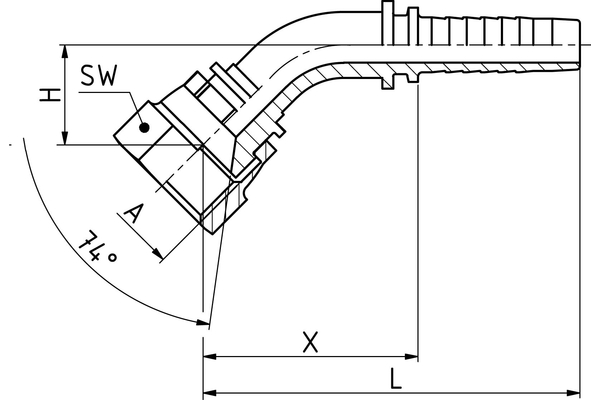

  H [mm]:	15,0
  d [mm]:	4,0
  T:	7/16-20
  E [mm]:	15
  C [mm]:	38,0
  L [mm]:	66,0
  Connection name Indunorm:	JF 45°
  Connection type:	DKJ 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
