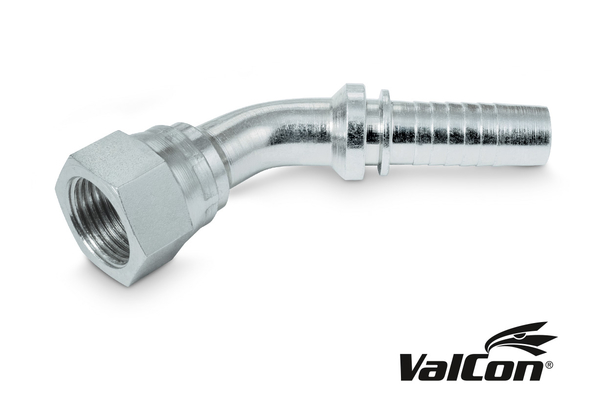

ValCon® DKJ 45°

Similar image
Similar image

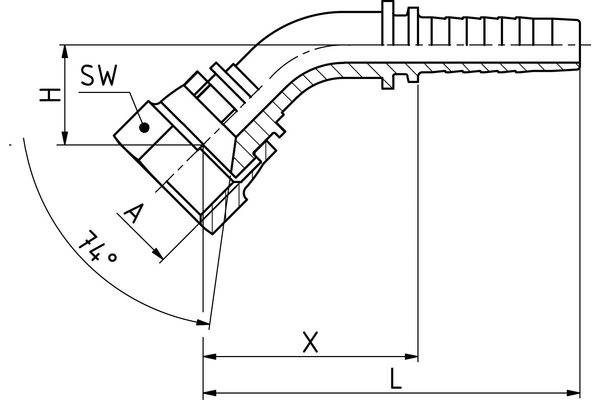

JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

To accessories

Detail

Art. No.
VC07J45S04
%
SALE
VC08J45S05
%
SALE
VC09J45S06
%
SALE
VC12J45S08
%
SALE
VC14J45S10
%
SALE
VC17J45S10
%
SALE
VC19J45S12
%
SALE
VC21J45S16
%
SALE
VC08J45S04
%
SALE
VC09J45S04
%
SALE
VC09J45S05
%
SALE
VC12J45S06
%
SALE
VC14J45S08
%
SALE
VC17J45S12
%
SALE
VC21J45S12
%
SALE
DN
6
8
10
12
16
16
19
25
6
6
8
10
12
19
19
Size
04
06
08
10
10
12
16
04
04
05
06
08
12
12
Inch
1/4"
3/8"
1/2"
5/8"
5/8"
3/4"
1"
1/4"
1/4"
5/16"
3/8"
1/2"
3/4"
3/4"
Thread + standard
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
H [mm]
15,0
15,0
19,0
21,0
23,0
25,0
29,0
34,0
17,0
15,0
15,0
19,0
23,0
27,0
29,0
d [mm]
4,0
5,5
7,0
9,5
12,0
12,0
15,0
20,0
4,0
4,0
5,5
7,0
9,5
15,0
15,0
T
7/16-20
9/16-18
3/4-16
7/8-14
1.1/16-12
1.3/16-12
1.5/16-12
1/2-20
9/16-18
9/16-18
3/4-16
7/8-14
1.1/16-12
1.5/16-12
E [mm]
15
17
19
24
27
32
36
38
17
19
19
24
27
32
38
C [mm]
38,0
42,0
50,0
46,0
58,0
63,0
66,0
83,0
40,0
36,0
42,0
41,0
52,0
69,0
67,0
L [mm]
66,0
70,0
85,0
77,5
92,5
97,5
107,0
136,5
68,0
61,0
70,0
70,5
83,5
118,5
108,0
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: JF 45°
    Connection type: DKJ 45°
    Construction form: 45°
    Material: Free cutting steel
    Surface: CrIII
    Type of fittings: VC
