VC21J45S16

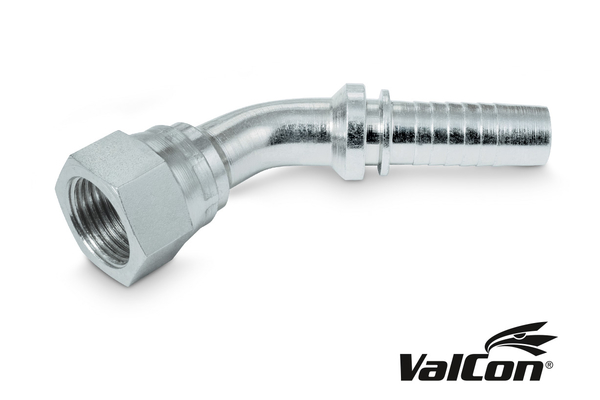

Valcon® swage fitting DKJ 45° JF 45°

Product info

• Technical data

  DN:	25
  Size:	16
  Inch:	1"
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

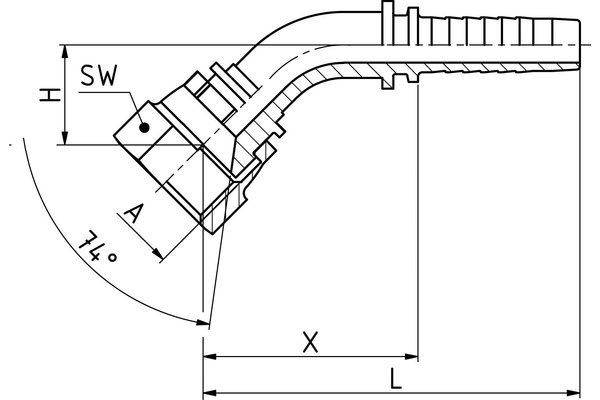

  H [mm]:	34,0
  d [mm]:	20,0
  T:	1.5/16-12
  E [mm]:	38
  C [mm]:	83,0
  L [mm]:	136,5
  Connection name Indunorm:	JF 45°
  Connection type:	DKJ 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
