VC14J45S10

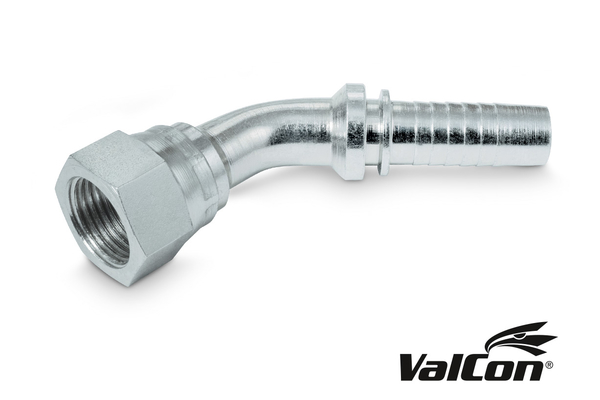

Valcon® swage fitting DKJ 45° JF 45°

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8"
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

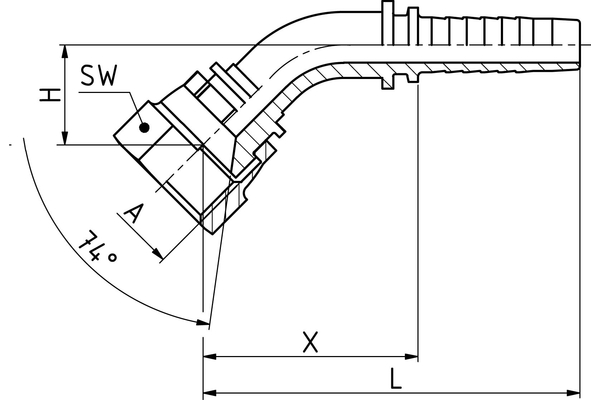

  H [mm]:	23,0
  d [mm]:	12,0
  T:	7/8-14
  E [mm]:	27
  C [mm]:	58,0
  L [mm]:	92,5
  Connection name Indunorm:	JF 45°
  Connection type:	DKJ 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
