VC12J45S08

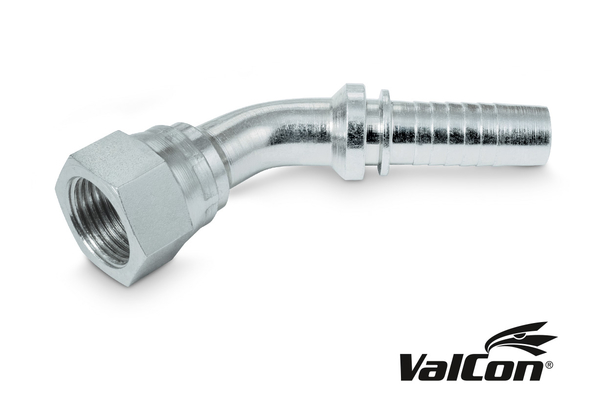

Valcon® swage fitting DKJ 45° JF 45°

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2"
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread

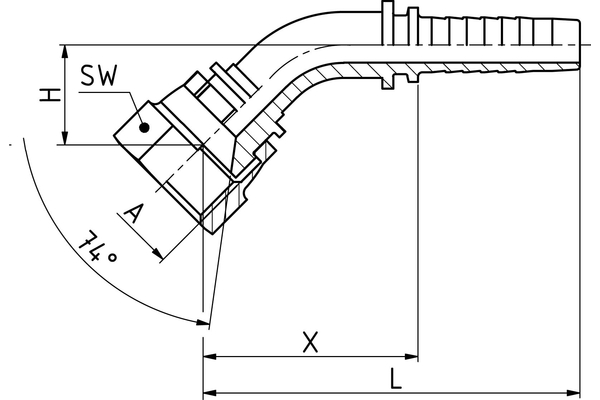

  H [mm]:	21,0
  d [mm]:	9,5
  T:	3/4-16
  E [mm]:	24
  C [mm]:	46,0
  L [mm]:	77,5
  Connection name Indunorm:	JF 45°
  Connection type:	DKJ 45°
  Construction form:	45°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
