VC04LORF90S04

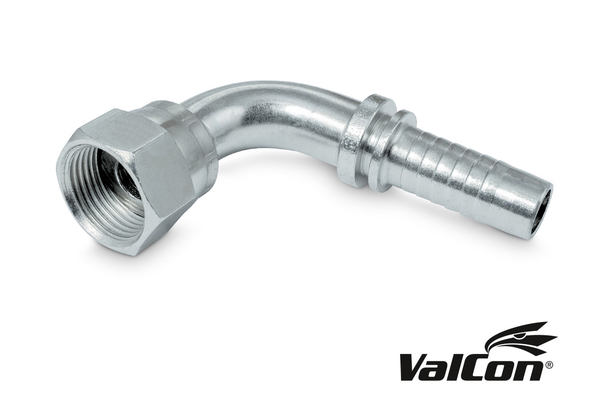

Valcon® swage fitting ORFS 90° with union nut LORF 90°

Product info

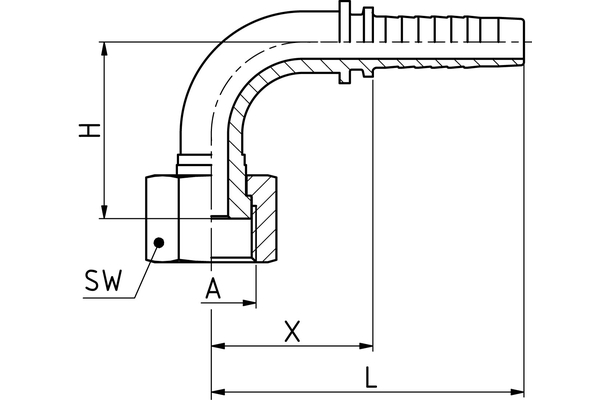

• Technical data

  DN:	6
  Size:	04
  Inch:	1/4"
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread
  H [mm]:	24,0
  d [mm]:	4,0
  T:	9/16-18
  E [mm]:	17
  C [mm]:	23,5
  L [mm]:	51,0
  Connection name Indunorm:	LORF 90°
  Connection type:	ORFS 90° with union nut
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
