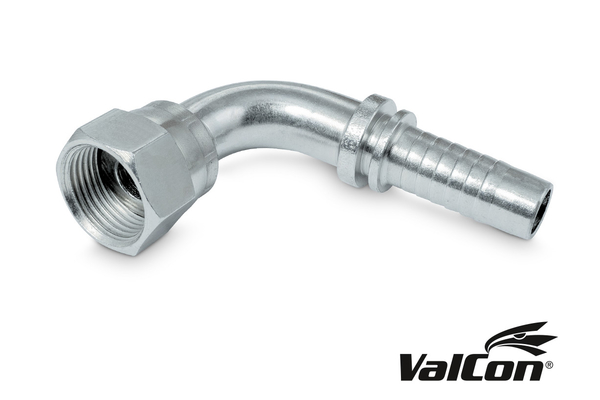

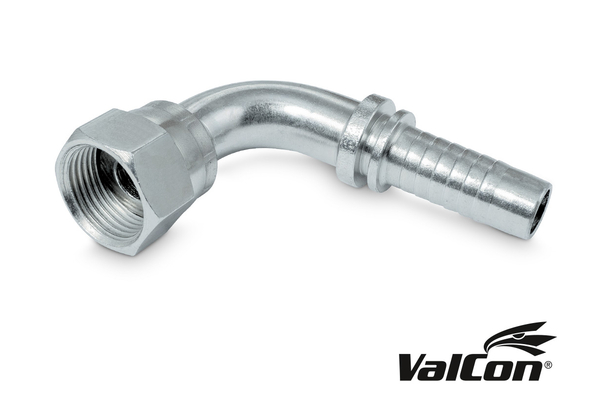

Valcon® ORFS 90° with swivel nut

Similar image
Similar image

ORFS sealing form, with union nut, UN / UNF / UNS-Thread

To accessories

Detail

Art. No.
VC04LORF90S04
%
SALE
VC06LORF90S06
%
SALE
VC08LORF90S08
%
SALE
VC10LORF90S08
%
SALE
VC10LORF90S10
%
SALE
VC12LORF90S12
%
SALE
VC16LORF90S16
%
SALE
VC06LORF90S04
%
SALE
VC08LORF90S06
%
SALE
DN
6
10
12
12
16
19
25
6
10
Size
04
06
08
10
12
16
04
06
Inch
1/4"
3/8"
1/2"
5/8"
3/4"
1"
1/4"
3/8"
Thread + standard
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread
ORFS sealing form, with union nut, UN / UNF / UNS-Thread

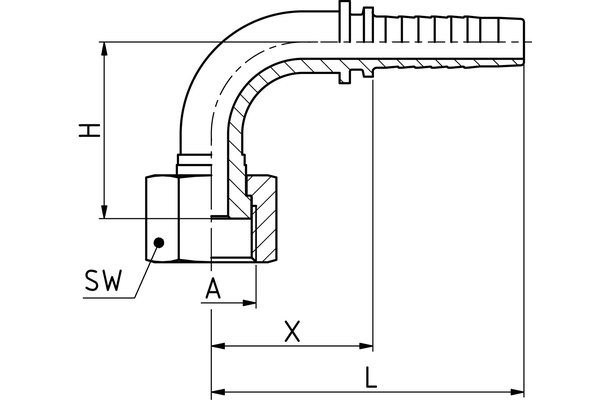

L1 [mm]
60,5
H [mm]
24,0
30,0
37,0
38,0
42,0
47,0
58,0
26,0
31,0
Height O-ring [mm]
31,0
d [mm]
4,0
7,0
9,5
9,5
12,0
15,0
20,0
4,0
7,0
T
9/16-18
11/16-16
13/16-16
1-14
1.3/16-12
1.7/16-12
11/16-16
13/16-16
H [mm]
31,0
E [mm]
17
22
24
30
30
36
41
22
24
C [mm]
23,5
31,0
40,0
41,0
45,0
57,0
72,0
26,0
34,0
L [mm]
51,0
60,5
71,5
78,0
79,5
106,5
125,5
51,0
63,5
Quantity


Standard nominal sizes in bold

Product info

  • Technical data
    Connection name Indunorm: LORF 90°
    Connection type: ORFS 90° with union nut
    Construction form: 90°
    Material: Free cutting steel
    Surface: CrIII
    Type of fittings: VC
