VC06LORF90S06

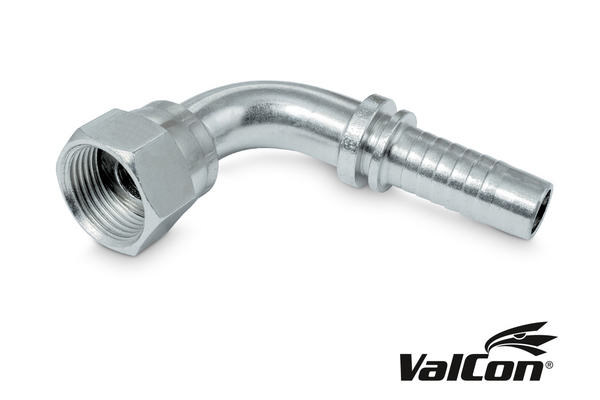

Valcon® swage fitting ORFS 90° with union nut LORF 90°

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8"
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread

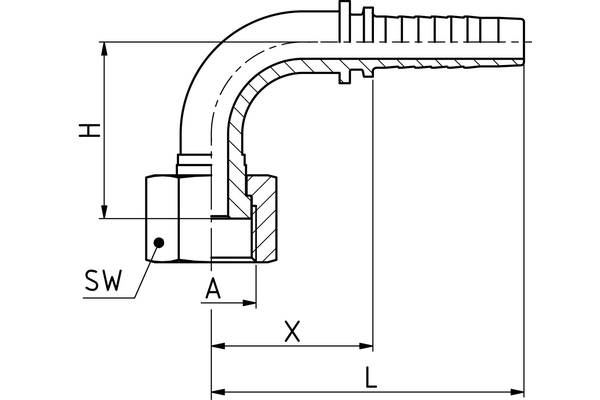

  L1 [mm]:	60,5
  H [mm]:	30,0
  Height O-ring [mm]:	31,0
  d [mm]:	7,0
  T:	11/16-16
  H [mm]:	31,0
  E [mm]:	22
  C [mm]:	31,0
  L [mm]:	60,5
  Connection name Indunorm:	LORF 90°
  Connection type:	ORFS 90° with union nut
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
