Art. No.: VC10LORF90S08
List number: 05312225

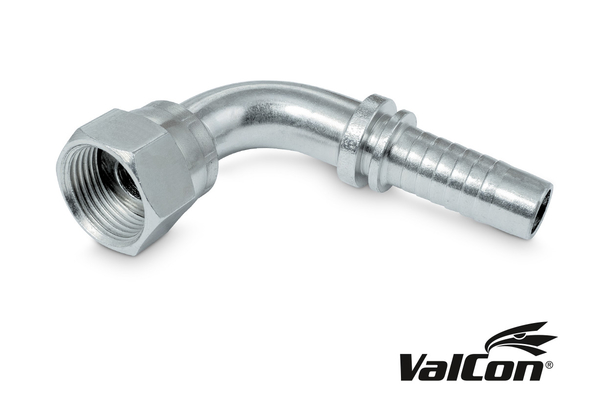

ORFS sealing form, with union nut, UN / UNF / UNS-Thread

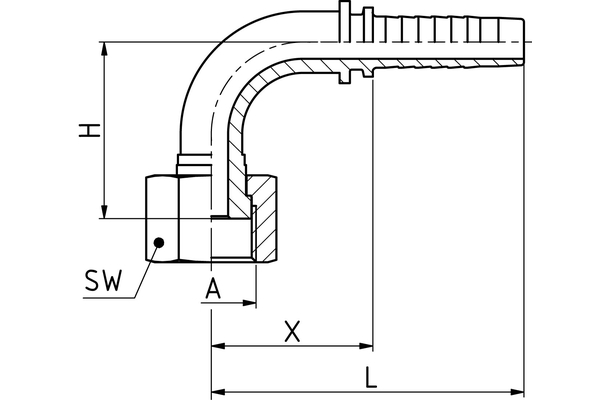

| DN: | 12 |
| Thread + standard: | ORFS sealing form, with union nut, UN / UNF / UNS-Thread |
| H [mm]: | 38,0 |
| d [mm]: | 9,5 |
| E [mm]: | 30 |
| C [mm]: | 41,0 |
| L [mm]: | 78,0 |
| Connection name Indunorm: | LORF 90° |
| Connection type: | ORFS 90° with union nut |
| Construction form: | 90° |
| Material: | Free cutting steel |
| Surface: | CrIII |
| Type of fittings: | VC |
Reserve technical changes.
