VC10LORF90S10

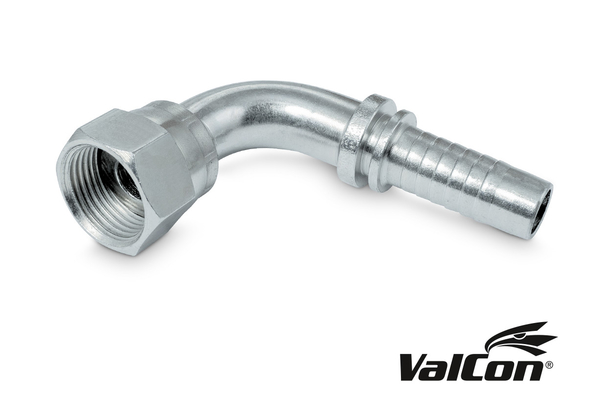

Valcon® swage fitting ORFS 90° with union nut LORF 90°

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8"
  Thread + standard:	ORFS sealing form, with union nut, UN / UNF / UNS-Thread

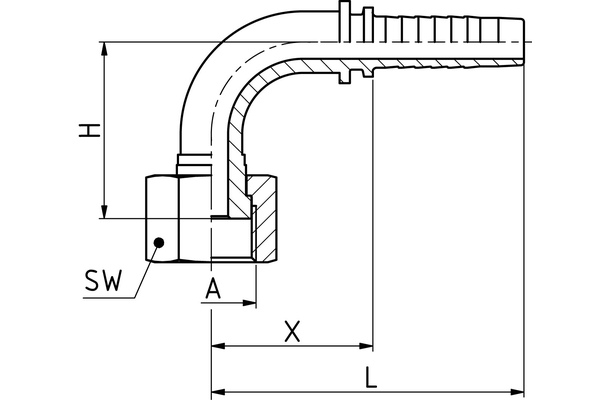

  H [mm]:	42,0
  d [mm]:	12,0
  T:	1-14
  E [mm]:	30
  C [mm]:	45,0
  L [mm]:	79,5
  Connection name Indunorm:	LORF 90°
  Connection type:	ORFS 90° with union nut
  Construction form:	90°
  Material:	Free cutting steel
  Surface:	CrIII
  Type of fittings:	VC
