XJ..HS

Detail

Art. No.
XJ04HS
%
SALE
XJ06HS
%
SALE
DN
06
10
Size
04
06
Inch
1/4
3/8

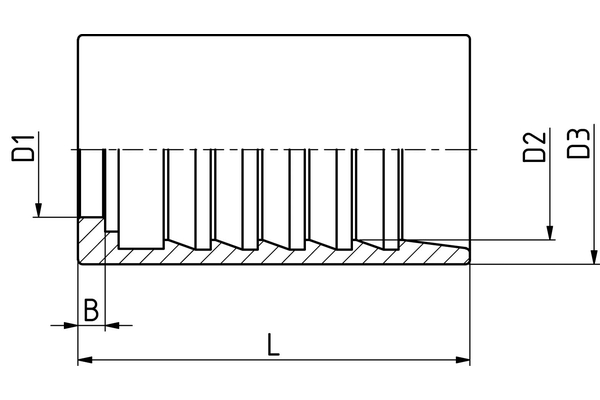

D2 [mm]
20,0
25,0
Thread + standard

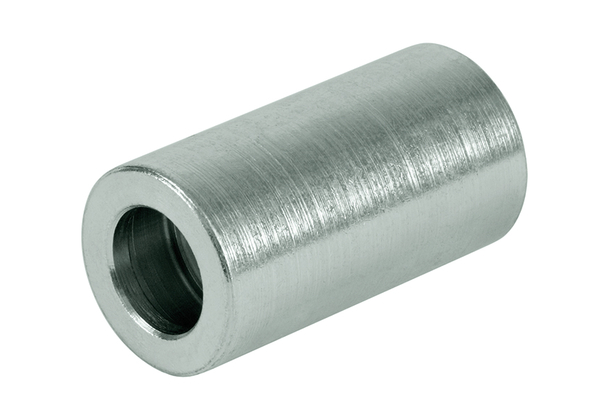

Swage ferrule for TP10HS
Swage ferrule for TP10HS
L [mm]
38,2
43,4
D [mm]
11,7
15,0
D1 [mm]
14,6
19,8
Quantity


Product info

  • Technical data
    Connection name Indunorm: XJ..HS
    Material: Free cutting steel
    Material: free cutting steel
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: 700 bar hydraulic tool series XJ
    application: Ferrule, no-skive
